316L Titanium rod filter for Industrial oil filter purification-Yuwei Filtration Equipment Co., Ltd.

Description

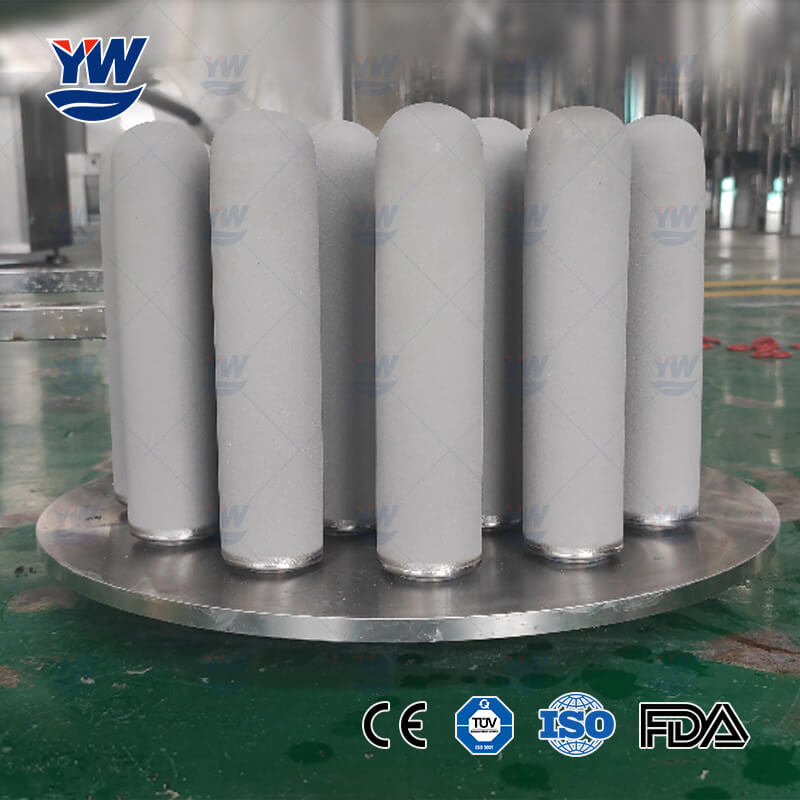

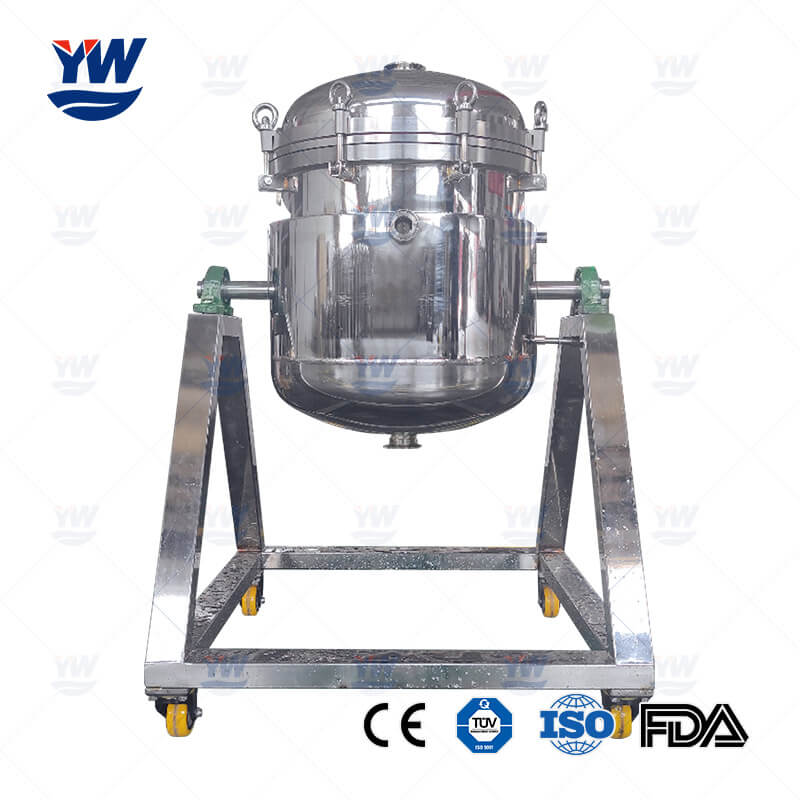

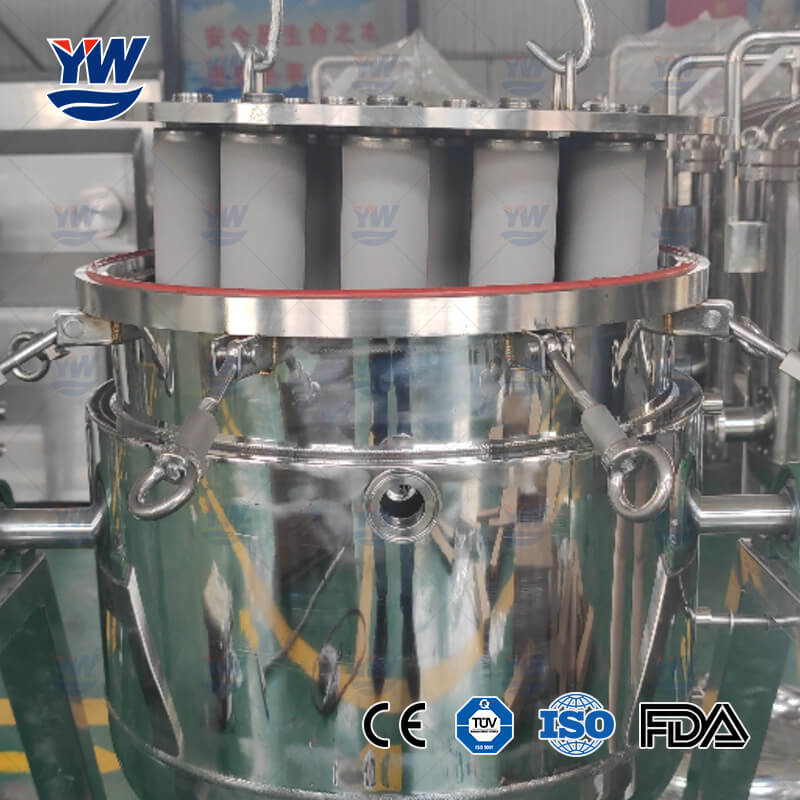

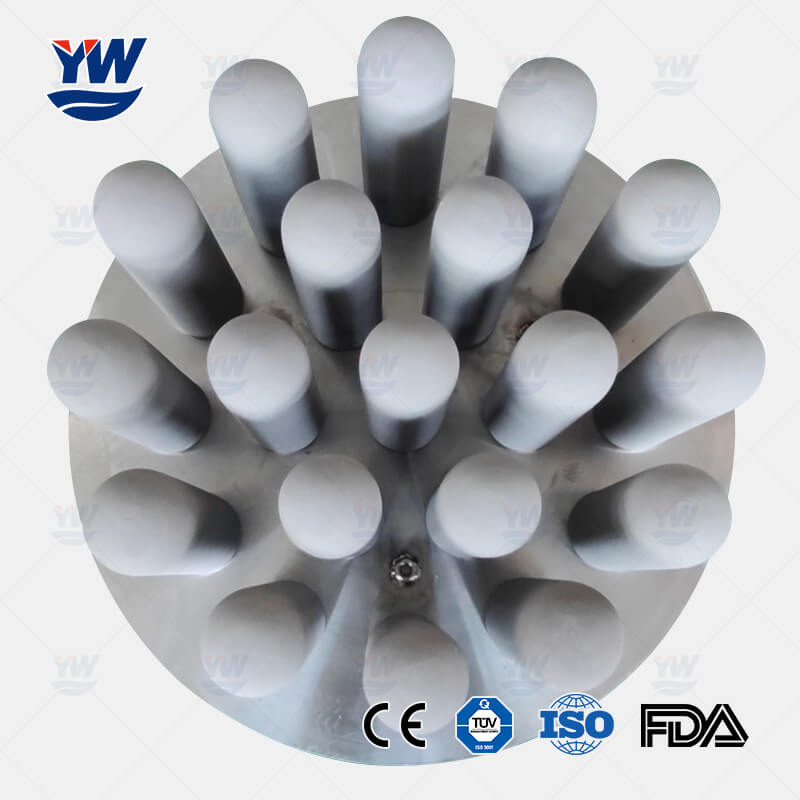

Titanium rod filter is a filter made of titanium powder sintered filter element. It is generally used for coarse filter or intermediate filter. Titanium rod filter element has the advantages of high precision, high temperature resistance, strong acid, strong alkali resistance, corrosion resistance, high mechanical strength, filter element can be reused repeatedly. The shell material is 316L or 304 stainless steel for liquid-solid separation, especially suitable for decarbonization filtration in infusion and injection production lines in the pharmaceutical industry.

Specification

Model	Max. flowWater	Diameter of Housing	Height	I/O Connections
YWLX10-1	0.1-0.3m³/h	102mm	500mm	25-32DN
YWLX20-1	0.3-0.5m³/h	102mm	750mm	25-32DN
YWLX30-1	1.2m³/h	102mm	1000mm	25-32DN
YWLX40-1	1.5m³/h	102mm	1250mm	25-32DN
YWLX10-3	1.2m³/h	160mm	650mm	25-40DN
YWLX20-3	1.5m³/h	160mm	900mm	25-40DN
YWLX30-3	3.6m³/h	160mm	1150mm	25-40DN
YWLX40-3	4.5m³/h	160mm	1400mm	25-40DN
YWLX20-5	2.5m³/h	200mm	900mm	25-50DN
YWLX30-5	6m³/h	200mm	1150mm	25-50DN
YWLX40-5	7.5m³/h	200mm	1400mm	25-50DN
YWLX20-7	3.5m³/h	230mm	900mm	25-50DN
YWLX30-7	8.4m³/h	230mm	1150mm	25-50DN
YWLX40-7	10.5m³/h	230mm	1400mm	25-50DN
YWLX20-9	4.5m³/h	300mm	900mm	25-50DN
YWLX30-9	10.8m³/h	300mm	1150mm	25-50DN
YWLX40-9	13.5m³/h	300mm	1400mm	25-50DN
YWLX20-12	6m³/h	300mm	900mm	25-50DN
YWLX30-12	14.4m³/h	300mm	1150mm	25-50DN
YWLX40-12	18m³/h	300mm	1400mm	25-50DN
YWLX20-15	7.5m³/h	300mm	900mm	25-65DN
YWLX30-15	18m³/h	350mm	1150mm	25-65DN
YWLX40-15	22.5m³/h	350mm	1400mm	25-65DN
YWLX30-20	24m³/h	400mm	1150mm	25-65DN
YWLX40-20	30m³/h	400mm	1400mm	25-65DN
YWLX30-25	30m³/h	450mm	1150mm	50-80DN
YWLX40-25	37.5m³/h	450mm	1400mm	50-80DN
YWLX30-30	36m³/h	500mm	1500mm	50-80DN
YWLX40-30	45m³/h	500mm	1750mm	50-80DN
YWLX30-35	42m³/h	550mm	1500mm	50-100DN
YWLX40-35	52.5m³/h	550mm	1750mm	50-100DN
YWLX30-40	48m³/h	600mm	1500mm	50-100DN
YWLX40-40	60m³/h	600mm	1750mm	50-100DN
YWLX40-60	90m³/h	700mm	1750mm	50-100DN
YWLX40-80	120m³/h	800mm	1750mm	50-100DN
YWLX40-100	150m³/h	900mm	1750mm	50-125DN

Features

Good airtight, compact structure, not easy to damage, suitable for the production site more severe working conditions.
There is no adsorption loss of the filter solution, adsorbent and catalyst, and the original composition of the working medium is not changed.
Non-toxic, no magnetic, no fall off, good biological compatibility, because of this performance, so titanium rod filter is widely used in the pharmaceutical industry, food and beverage industry.
Small footprint, high temperature resistance, and good oxidation resistance, suitable for a variety of acid, alkali, salt and various organic solvents high temperature precision filtration.
Convenient disassembly, scientific and diverse filter structure, to meet a variety of filtration requirements.
High filtration precision, can be 0.2 (0.45) micron above the particle filtration at one time

Application

Industrial oil filter purification

Gasoline, diesel oil, kerosene, lubricating oil, transformer oil filtration

Fine chemical filtration and purification

Filter silicon sulfate, hydrogen peroxide and alcohol;
Sulfuric acid, phosphoric acid, methanol, ethanol, acetone filtration;
No aluminum sulfate, chloroform, dichloroammonia, chlorine gas filtration.
Desalination and filtration of crystalline salt, secondary saline and alkali solutions;
Filtration of barium sulfate and barium sulfide in the production of lide powder;
Chromium hydroxide and barium chromate filtration;
Filter elements, filter tanks and sulfur filtration in fiber production;
Filtration of oxalic acid, amino acid, lactic acid and citric acid;
Barium sulfate for photographic film filtration;
liquid powder activated carbon decarbonization and filtration;
Precision filtration of inorganic salt solution and powder;
