Material: Stainless Steel / Carbon Steel
Filter Pressure : 0.1-0.4Mpa
Recoil Pressure : 0.6Mpa
Filtering Precision : 3-200μm
Max Flow : 1-1000(t/h)

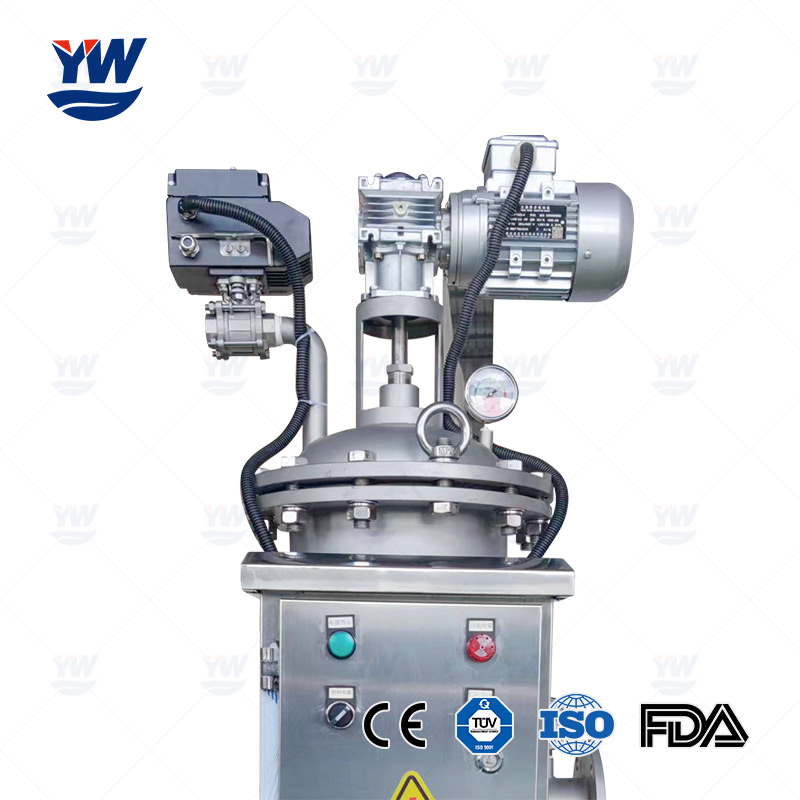

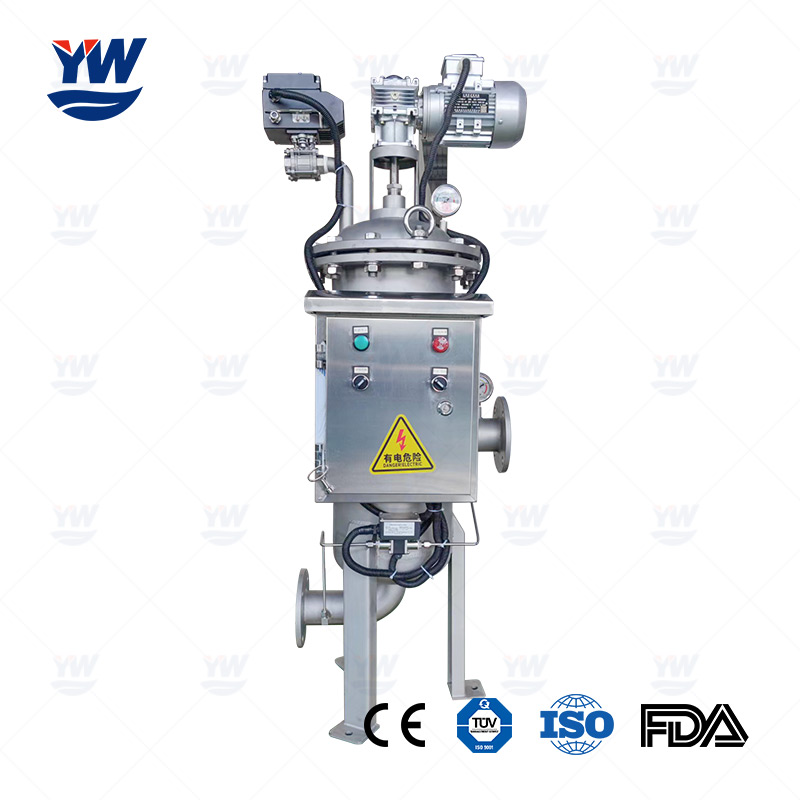

Automatic backwash filters are used to filter and trap particulate impurities in low viscosity liquids. Its automatic cleaning function and excellent structural design bring users stable and reliable control performance, but also significantly reduce the cost of operation and maintenance.
Automatic backwash filter adopts wire gap type or super braided mesh type stainless steel filter element, filtering accuracy from 25 to 3000 microns, while ensuring high filtration rate of pollution particles in process media. When the filter detects the filter element fouling, it will start the online automatic cleaning process, which does not affect the continuity of the filter outlet liquid flow.
| Model | Max Flow | Filtering Precision | Filter Pressure | Recoil Pressure | Size |
| YWFC-10 | 1-10t/h | 3-200μm | 0.1-0.4Mpa | 0.6Mpa | 300*100mm |
| YWFC-20 | 10-20t/h | 3-200μm | 0.1-0.4Mpa | 0.6Mpa | 350*1300mm |
| YWFC-30 | 20-30t/h | 3-200μm | 0.1-0.4Mpa | 0.6Mpa | 500*1500mm |
| YWFC-50 | 30-50t/h | 3-200μm | 0.1-0.4Mpa | 0.6Mpa | 500*1500mm |
| YWFC-100 | 50-100t/h | 3-200μm | 0.1-0.4Mpa | 0.6Mpa | 600*1500mm |
| YWFC-200 | 100-200t/h | 3-200μm | 0.1-0.4Mpa | 0.6Mpa | 700*1500mm |
| YWFC-300 | 200-300t/h | 3-200μm | 0.1-0.4Mpa | 0.6Mpa | 750*1500mm |
| YWFC-400 | 300-400t/h | 3-200μm | 0.1-0.4Mpa | 0.6Mpa | 850*1500mm |
| YWFC-500 | 400-500t/h | 3-200μm | 0.1-0.4Mpa | 0.6Mpa | 950*1500mm |
| YWFC-600 | 500-600t/h | 3-200μm | 0.1-0.4Mpa | 0.6Mpa | 1000*1500mm |
| YWFC-700 | 600-700t/h | 3-200μm | 0.1-0.4Mpa | 0.6Mpa | 1050*1500mm |
| YWFC-800 | 700-800t/h | 3-200μm | 0.1-0.4Mpa | 0.6Mpa | 1100*1500mm |
| YWFC-900 | 800-900t/h | 3-200μm | 0.1-0.4Mpa | 0.6Mpa | 1150*1500mm |
| YWFC-1000 | 900-1000t/h | 3-200μm | 0.1-0.4Mpa | 0.6Mpa | 1300*1500mm |
Due to the high temperature of the working environment, large hydraulic and lubricating systems in the metallurgical industry need to use high-power heat exchangers, the hot medium is oil, the cold medium is water. The use of ordinary water for a long time will make the waterway of the heat exchanger adhere to a large number of scale, which directly affects the water used for cooling, resulting in the decline of heat transfer effect. The use of automatic backwash filter will protect the heat exchanger, ensure that the water into the heat exchanger to reach a high degree of cleanliness, maintain the normal use of the cooling system. There are also hot rolling steel plate equipment, industrial water descaling nozzle protection filter, automatic backwashing filter is widely used to ensure that the water into the nozzle is relatively clean, so that the nozzle clogging rate is greatly reduced mill emulsion system is the same, the filter installed in the pump before the entrance, can effectively extend the service life of the pump, save maintenance costs.
Can be installed in the main lubricant for centralized filtration or separate filtration of each equipment. Ensure the cooling lubricant (cutting fluid cleaning fluid) longer cycle use, extend the service life of the tool, improve the processing efficiency and processing quality to reduce environmental pollution and the cost of cooling lubricant treatment and replenishment
The thermal power plant is used in industrial cooling water, sealing water and dust spray water filtration and boiler recharge water pre-filtration; The filtration of bearing cooling water, generator oil cooling water and floating ring sealing water in hydropower plants effectively protects the cleaning of heat exchange components and working components, and prolonging their service life
The circulating water used to heat homes passes through thousands of homes. Due to the replacement of the radiator in the user's home and a long time of not cleaning, it will inevitably leave a large number of scale and impurities, if in the recovery and heat transfer before do not do filtration treatment, will certainly lead to heat exchanger plugging and wear, resulting in reduced heat exchange efficiency, the application of automatic backwash filter not only reduce manual maintenance costs, but also strengthen the quality of circulating water, To ensure the warmth of thousands of homes
Including seawater desalination treatment, sewage discharge treatment, micro-filtration and ultrafine filtration sterilization pretreatment, filter out the suspended particles in the water, protect the follow-up equipment, can be widely used as a security filter.
Papermaking process requires a large amount of water for equipment sealing, spraying, cooling, backwash filter can effectively protect the nozzle, mesh cloth, vacuum pump and so on in papermaking equipment, reduce the blockage and wear caused by the failure of these equipment. Backwash filter is also widely used in snow machine suction pump protection, oil and gas mining pipeline flushing water, food industry drinking water and chemical industry cooling circulating water
