Chamber Filter Press for Sugar Syrup Filtration-Yuwei Filtration Equipment Co., Ltd.

Description

Filter presses is widely used in the pre-filtration and primary filtration stages of sugar syrup processing. Through these stages, the filter press provides the basic cleanliness for the subsequent processing of sugar syrup, while saving the cost of high-precision equipment, thereby forming an efficient multi-stage sugar syrup filtration system.

In the pre-filtration stage, the filter press is used to quickly remove suspended solid particles (such as sugarcane fibers, sand, and colloids), preventing large particles from clogging downstream precision filtration equipment (such as membrane filtration systems) and reducing the overall process load.
The primary filtration stage is aimed at filtering out large amounts of flocculent precipitates (such as calcium phosphate and proteins) formed after chemical clarification treatments (such as sulfur fumigation, liming, or phosphoric acid treatment), in order to obtain clear syrup liquid.

Filter Press Benefits:

1. High impurity holding capacity:

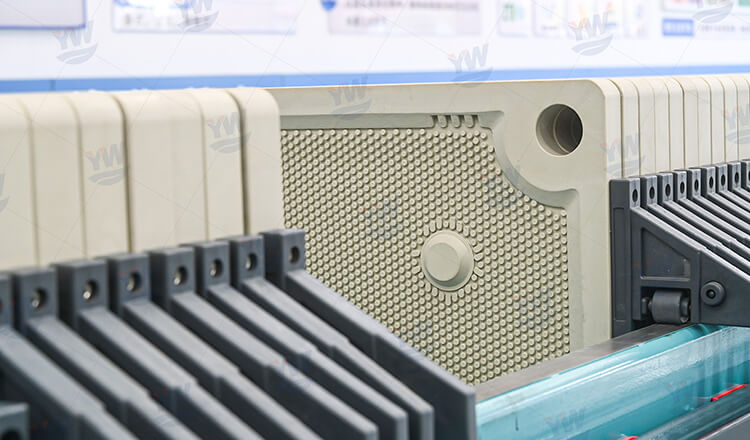

The filter chambers can accommodate large amounts of filter cake, making the equipment suitable for handling raw juice with high impurity content.

2. Adaptability to complex components:

The system is highly tolerant to colloids and viscous substances, not clogging easily.

Details

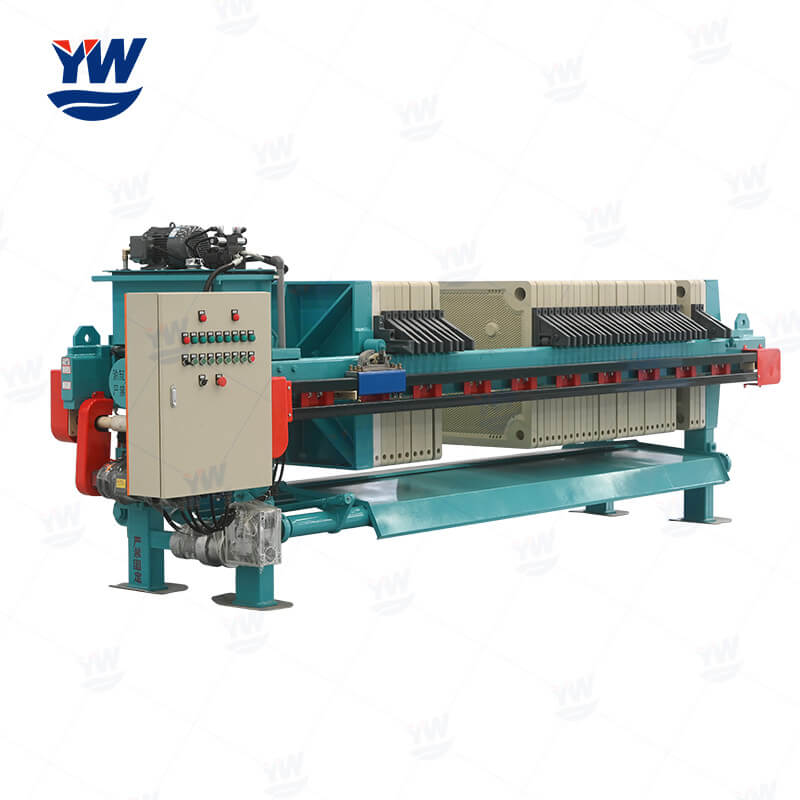

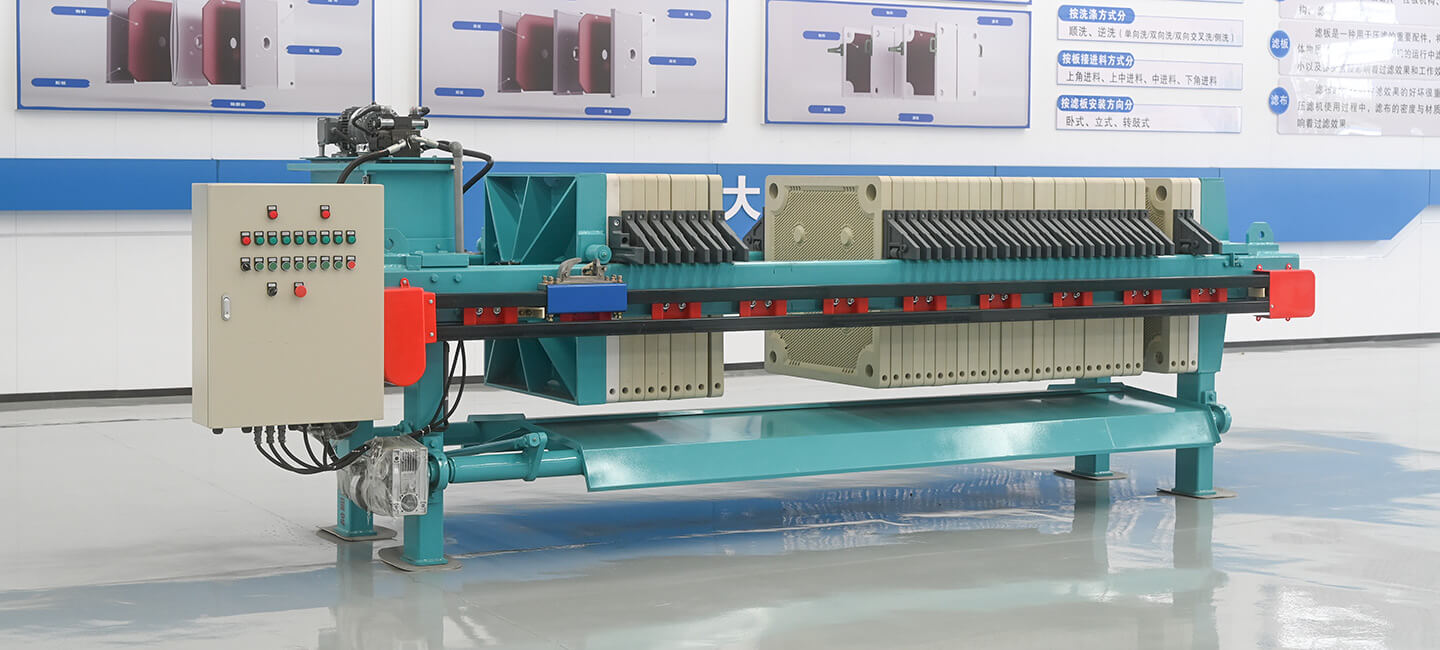

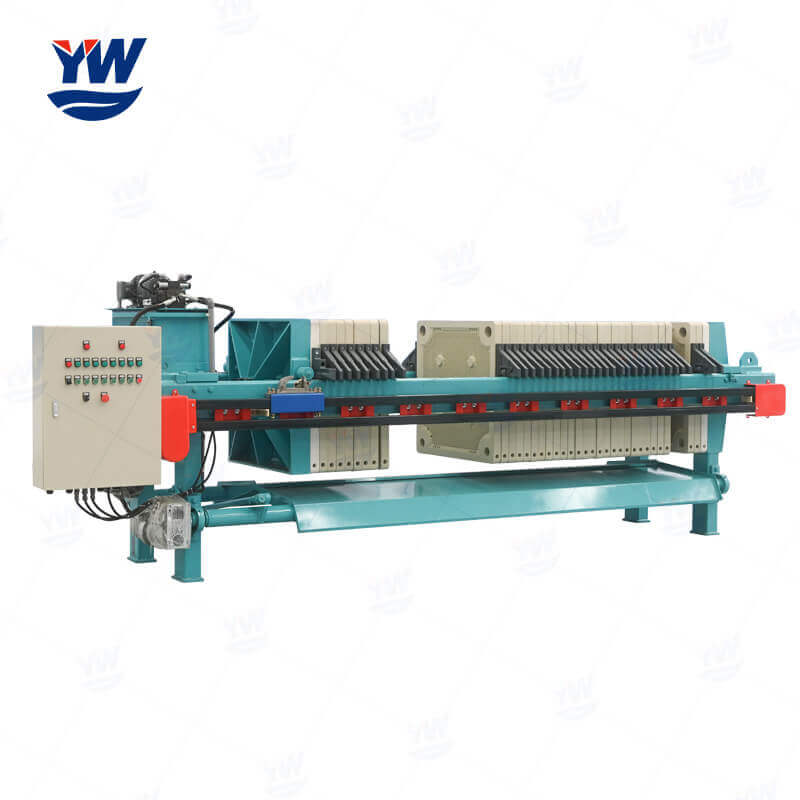

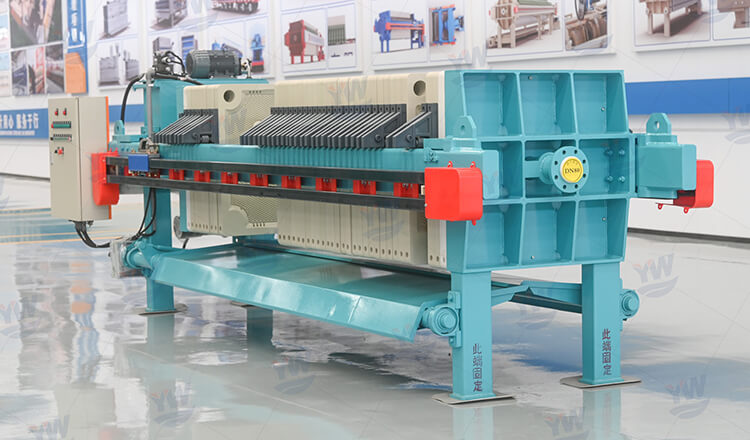

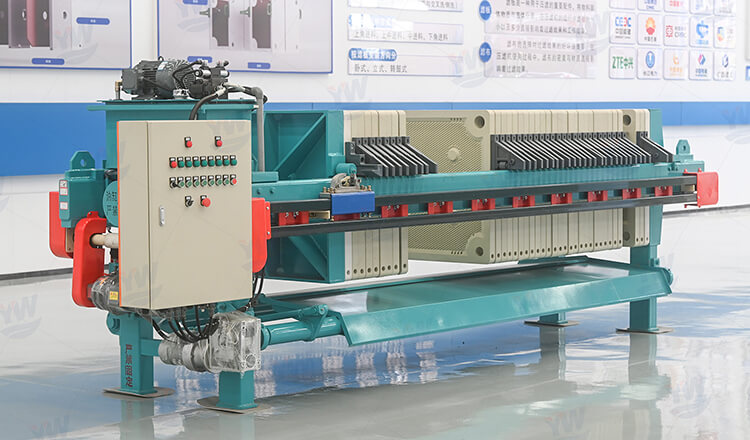

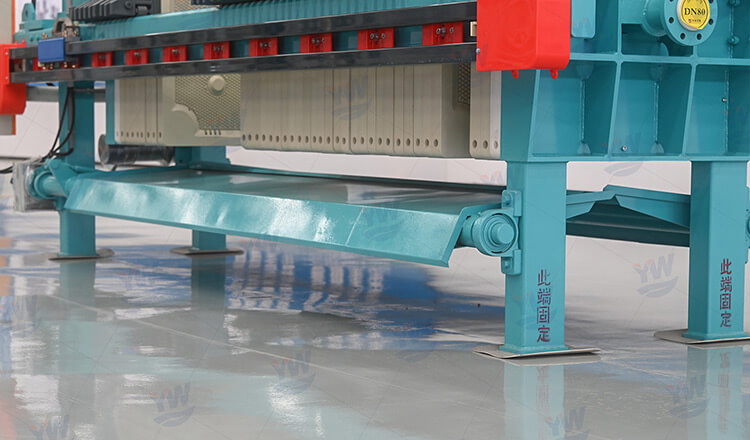

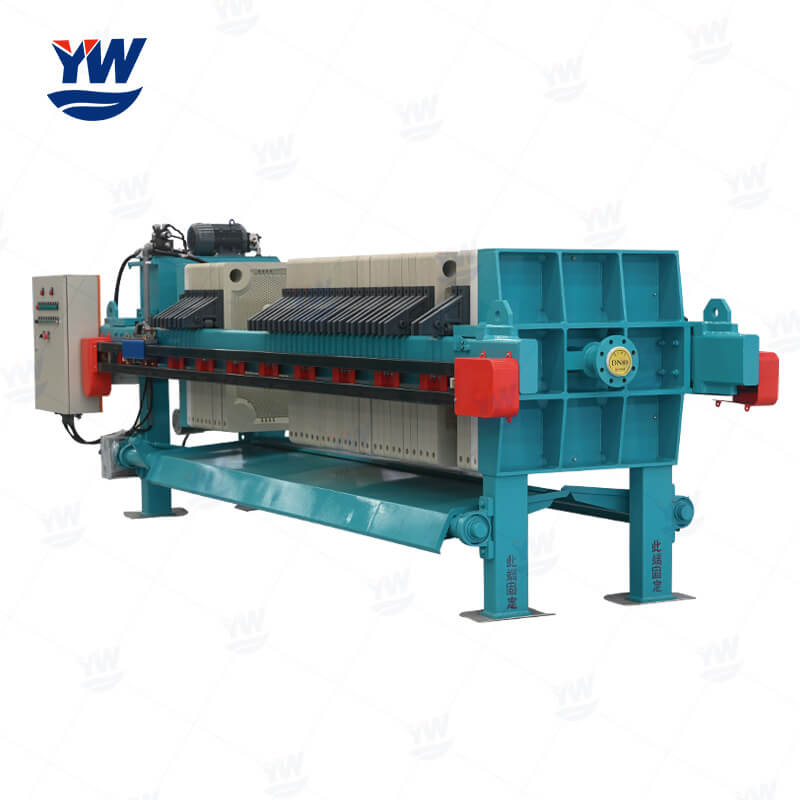

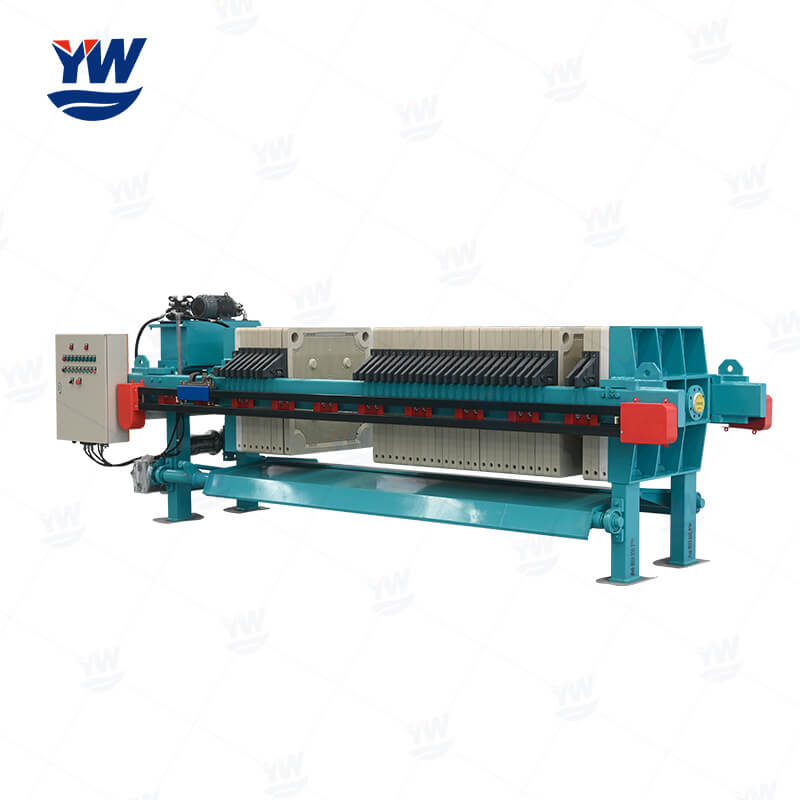

Chamber Filter Press for Sugar Syrup Filtration

Specification

Model	Plate size	Filter Area	Volume	Plate QTY	Pressure	Power	Weight	Dimensions
XM/AY-4/450	500mm	4m²	60L	9pcs	≥0.6MPa	2.2Kw	860Kg	1950700900mm
XM/AY-6/450		6m²	91L	14pcs			910Kg	2200700900mm
XM/AY-8/450		8m²	121L	19pcs			960Kg	2450700900mm
XM/AY-10/450		10m²	151L	24pcs			1010Kg	2700700900mm
XM/AY-12/450		12m²	182L	29pcs			1060Kg	2950700900mm
XM/AY-15/450		15m²	225L	36pcs			1130Kg	3300700900mm
XM/AY-16/450		16m²	243L	39pcs			1160Kg	3450700900mm
XM/AY-15/630	700mm	15m²	226L	18pcs	≥0.6MPa	2.2Kw	1725Kg	26409001060mm
XM/AY-20/630		20m²	297L	24pcs			1725Kg	29409001060mm
XM/AY-30/630		30m²	452L	37pcs			2360Kg	35909001060mm
XM/AY-40/630		40m²	595L	49pcs			2788Kg	43009001060mm
XM/AY-30/800	800mm	30m²	460L	28pcs	≥0.6MPa	2.2Kw	2170Kg	370012001160mm
XM/AY-40/800		40m²	595L	38pcs			2450Kg	430012001160mm
XM/AY-50/800		50m²	749L	47pcs			2700Kg	484012001160mm
XM/AY-60/800		60m²	902L	57pcs			2980Kg	544012001160mm
XM/AY-70/800		70m²	1056L	67pcs			3250Kg	604012001160mm
XM/AY-30/870	870mm	30m²	460L	23pcs	≥0.6MPa	2.2Kw	2580Kg	333013501250mm
XM/AY-40/870		40m²	595L	30pcs			2925Kg	342013501250mm
XM/AY-50/870		50m²	748L	38pcs			3318Kg	426013501250mm
XM/AY-60/870		60m²	902L	46pcs			3712Kg	470013501250mm
XM/AY-70/870		70m²	1056L	54pcs			4106Kg	514013501250mm
XM/AY-80/870		80m²	1210L	62pcs			4561Kg	558013501250mm
XM/AY-50/1000	1000mm	50m²	736L	28pcs	≥0.6MPa	4Kw	4072Kg	404015001360mm
XM/AY-60/1000		60m²	889L	34pcs			4468Kg	446015001360mm
XM/AY-70/1000		70m²	1041L	40pcs			4863Kg	476015001360mm
XM/AY-80/1000		80m²	1193L	46pcs			5259Kg	512015001360mm
XM/AY-100/1000		100m²	1475L	57pcs			5985Kg	580015001360mm
XM/AY-120/1000		120m²	1777L	69pcs			6776Kg	650015001360mm
XM/AZ-100/1250	1250mm	100m²	1468L	36pcs	≥0.6MPa	4Kw	6728Kg	502015001360mm
XM/AZ-120/1250		120m²	1746L	43pcs			7512Kg	547015001360mm
XM/AZ-140/1250		140m²	2063L	51pcs			8641Kg	599015001360mm
XM/AZ-160/1250		160m²	2341L	58pcs			9540Kg	645015001360mm
XM/AZ-180/1250		180m²	2619L	65pcs			10044Kg	690515001360mm
XM/AZ-200/1250		200m²	2896L	72pcs			10851Kg	736015001360mm
XM/AZ-220/1250		220m²	3214L	80pcs			11765Kg	788015001360mm
XM/AZ-250/1250		250m²	3650L	91pcs			12834Kg	860015001360mm
XM/AZ-200/1500	1500mm	200m²	2998L	49pcs	≥0.6MPa	11Kw	19530Kg	640022001900mm
XM/AZ-250/1500		250m²	3594L	61pcs			22478Kg	722522001900mm
XM/AZ-300/1500		300m²	4347L	74pcs			25526Kg	813022001900mm
XM/AZ-350/1500		350m²	5043L	86pcs			28720Kg	894022001900mm
XM/AZ-400/1500		400m²	5796L	99pcs			32074Kg	988022001900mm
XM/AZ-450/1500		450m²	6492L	111pcs			35086Kg	1069022001900mm
XM/AZ-500/1500		500m²	7187L	123pcs			38106Kg	1156022001900mm
