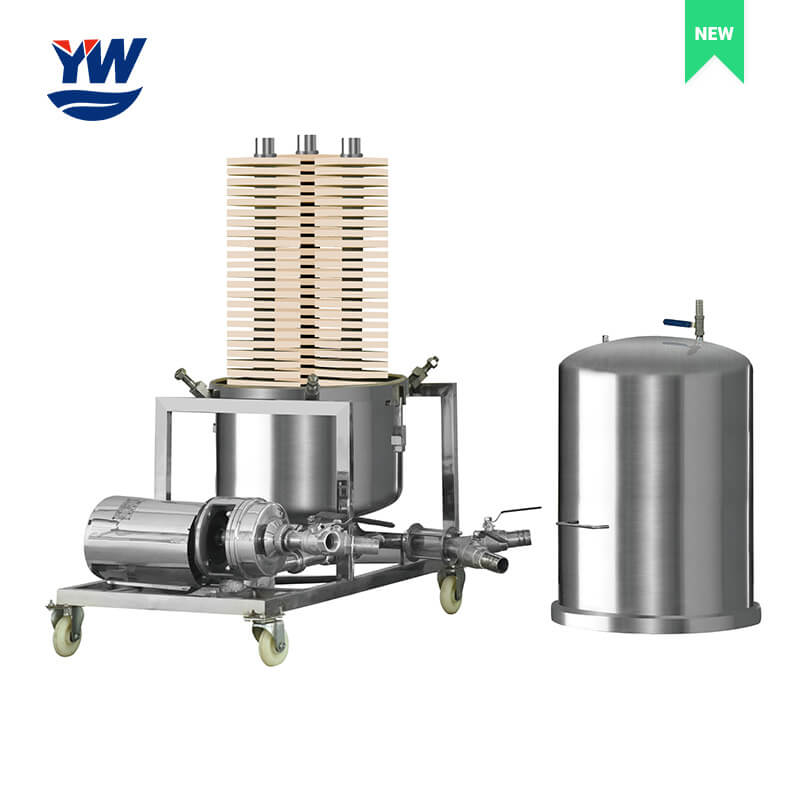

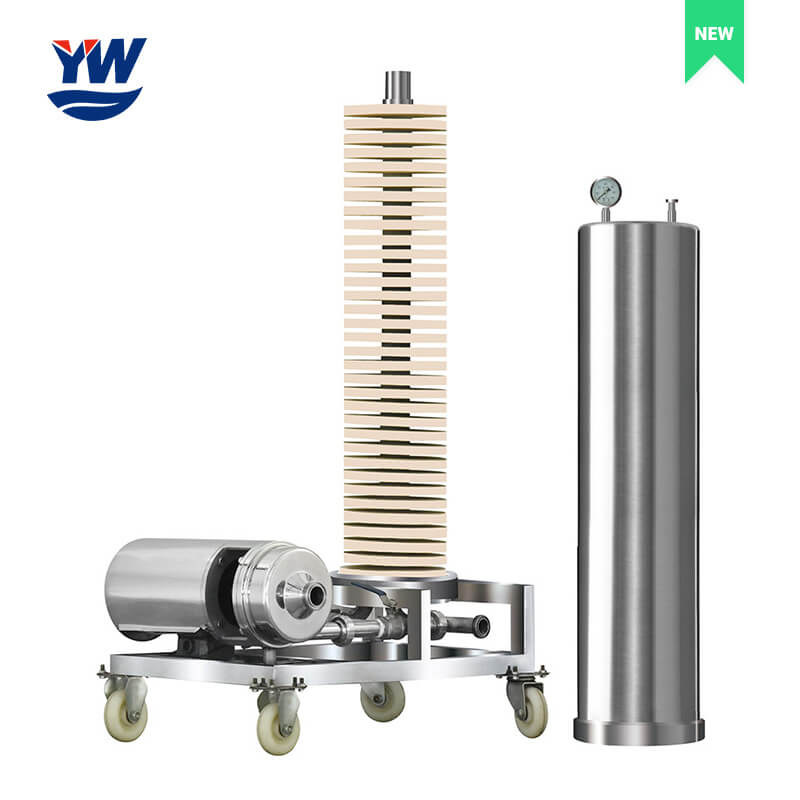

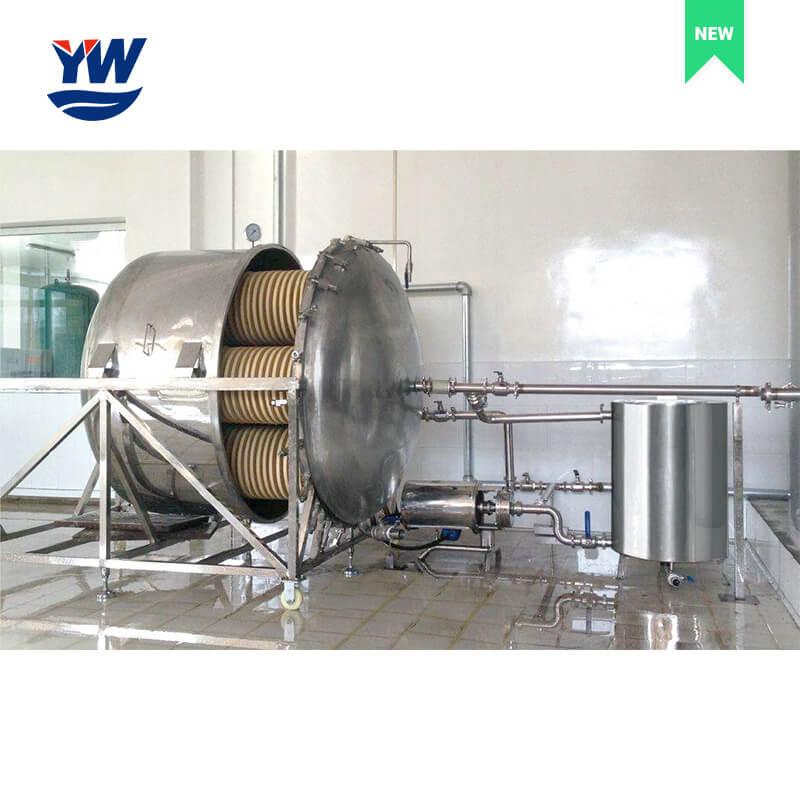

Diatomite Inorganic Membrane Filter Machine for Food and Beverage Applications

Save 20%-90% of diatomaceous earth usage

Material: SS304/SS316L

Filtration precision range: 0.1-2μm

Max filtration temp : 140°C

Max Flow : 2-10000(t/h)

Description

The diatomite inorganic membrane filter uses diatomite inorganic membrane filter discs as the filter unit. It is mainly used for sterile filtration and precision filtration of liquids. The equipment has stable chemical properties and high filtration precision. The machine housing and pipes are all made of national food grade SS304 (SS316L) stainless steel material, one-button intelligent control, can be washed and used repeatedly, high operating efficiency, low maintenance cost, safe and reliable.

Product Advantages

  • Good Performance
    Except for strong acids and alkali, it can be used normally at temperatures below 140℃ and forward pressure within the range of 0-0.1MPa;
  • Low Cost
    Compared with traditional filtration equipment, it can reduce the application amount of various filter aids by 20%-90%, and does not require filter media such as stainless steel filter screens, plastic support plates, and filter cloths;
  • Precision Optional
    Within the 0.1-2 micron filtration precision range, select suitable filter elements and equipment as needed;
  • Reasonable Structure
    The volume of this series of filters is 1/2-1/3 of the plate and frame filter with the same filtration area and flow rate, and it occupies a small area;
  • Can be cleaned automatically
    The diatomaceous earth inorganic membrane filtration equipment realizes online fully automatic flushing.
  • Easy to use
    It can be remotely controlled intelligently and is easy to operate and maintain.

Specification

Model Filtering Precision Filtering Area Max flow Max Work Temp. Working pressure Backflush pressure
YWGZP15-1 0.1-2.0(μm) 1.0m² 0.5-1(t/h) 140°C 0-0.35(MPa) 0-0.5(MPa)
YWGZP21-2 0.1-2.0(μm) 2.0m² 0.5-5(t/h) 140°C 0-0.3(MPa) 0-0.35(MPa)
YWGZP21-7 0.1-2.0(μm) 7m² 2.5-10(t/h) 140°C 0-0.3(MPa) 0-0.35(MPa)
YWGZP21-17 0.1-2.0(μm) 17m² 5-20(t/h) 140°C 0-0.3(MPa) 0-0.35(MPa)
YWGZP40-7 0.1-2.0(μm) 7m² 2.6-10(t/h) 140°C 0-0.35(MPa) 0-0.2(MPa)
YWGZP40-20 0.1-2.0(μm) 20m² 17-25(t/h) 140°C 0-0.3(MPa) 0-0.2(MPa)
YWGZP40-50 0.1-2.0(μm) 50m² 50-50(t/h) 140°C 0-0.3(MPa) 0-0.2(MPa)
YWGZP40-100 0.1-2.0(μm) 100m² 80-100(t/h) 140°C 0-0.3(MPa) 0-0.2(MPa)

Filter Unit

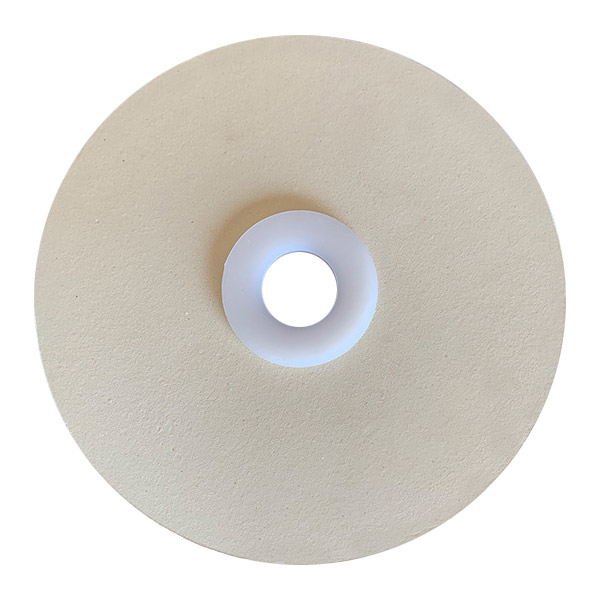

Diatomite inorganic membrane filter discs

The Filter Unit: Diatomite Inorganic Membrane Filter Discs

The diatomite inorganic membrane filter disc is sintered from high-quality pure natural diatomite. The core structure is dense and orderly, with good physical stability and efficient permeability. It has no pollution to the filtrate and can effectively remove particles below 0.2 microns. Diatomite inorganic membrane has the advantages of flat membrane, but also has its own advantages. The average life of diatomite inorganic membrane is 3-5 years. It does not need to replace the diaphragm frequently, the operating cost is greatly reduced, and the operation condition is good.

Advantages of Diatomite Inorganic Membrane Filter Discs

  • Pure natural material, diatomite Sio285% has stable chemical properties and no pollution to the filtrate;
  • High porosity, large flux, long filtration cycle and high filtration efficiency;
  • High temperature resistance, acid and alkali resistance, good wear resistance and pressure resistance;
  • No fine particles are missed, the filtration precision is high, no repeated circulation is needed, and the filtrate loss is small;
  • The filter disc is reused to save costs;
  • It can be customized according to needs and is suitable for various structural filtration equipment.

Application

This equipment is widely used in beer, liquor, wine, rice wine, cooking wine, drinking water, brewing soy sauce, vinegar, beverages, oral liquids, pharmaceuticals, gelatin, syrup, edible oil, petrochemical industry, lubricating oil, metallurgical chemical industry, circulating water, swimming pools Water, sewage treatment and other fields.
