Filter Plate, Membrane Plate, Recessed Plate, Chamber Filter Plate, Filter Press Plate Manufacturer

Modle: Filter Plate

Material of Plate : PP, Polypropylene, SS, Cast Iron

Size : Customizable

Send Email Inquiry Now

Description

We can make filter plates with different ingredients and different structural designs according to different slurry, in order to provide the best filtration solution.

We specialize in the design and large-scale production of chamber filter plates, membrane filter plates, mineral filter plates and flush filter plates and frames. We use state-of-the-art technology and the highest-quality polymer resin materials. Our standard plate material is PP-copolymer, but we offer a variety of proven alternatives, depending on your needs and the application of your filter plates. This includes PP-homopolymer (with or without glass fiber reinforcement), nylon with glass fiber reinforcement and PVDF with carbon filler.

Advantages

Yuwei has the expertise and the latest equipment required for manufacturing special components. Flexible production methods and tailor-made tools mean components can be made precisely according to customer requirements

Specially produced according to customer requirements
More than 30 years of experience of manufacturing plastic products
In-house mould construction
Special in-house developed materials

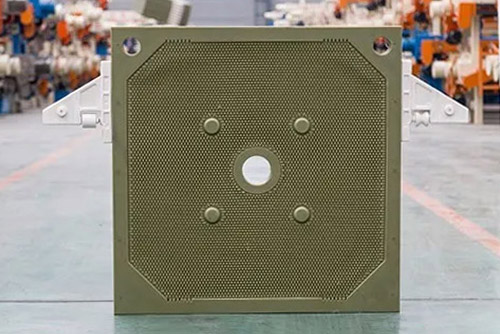

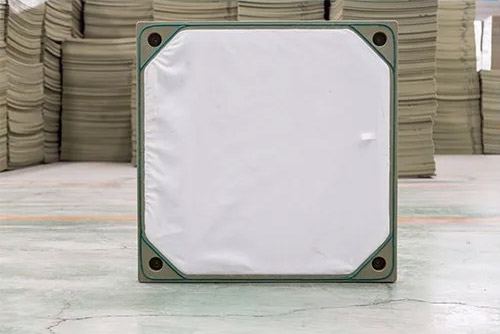

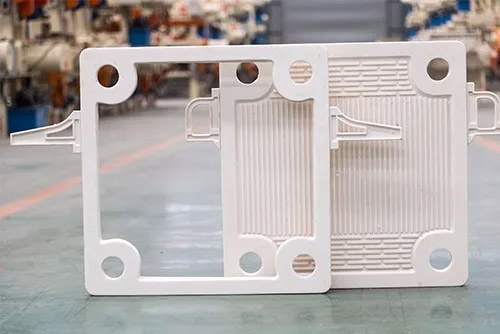

Product Display of Filter Plates

Specification

Item	Model	Outside Diamete	Iner Diameter	Volume	Plate Thickness	Side-hole Diameter	Central-hole Diameter	Central-hole Thickness	Weight

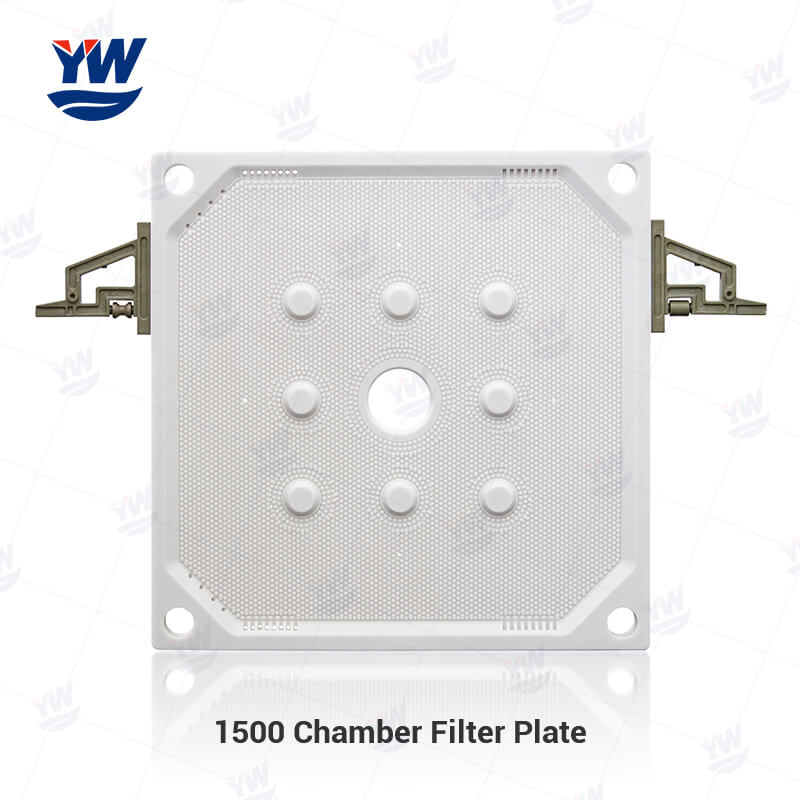

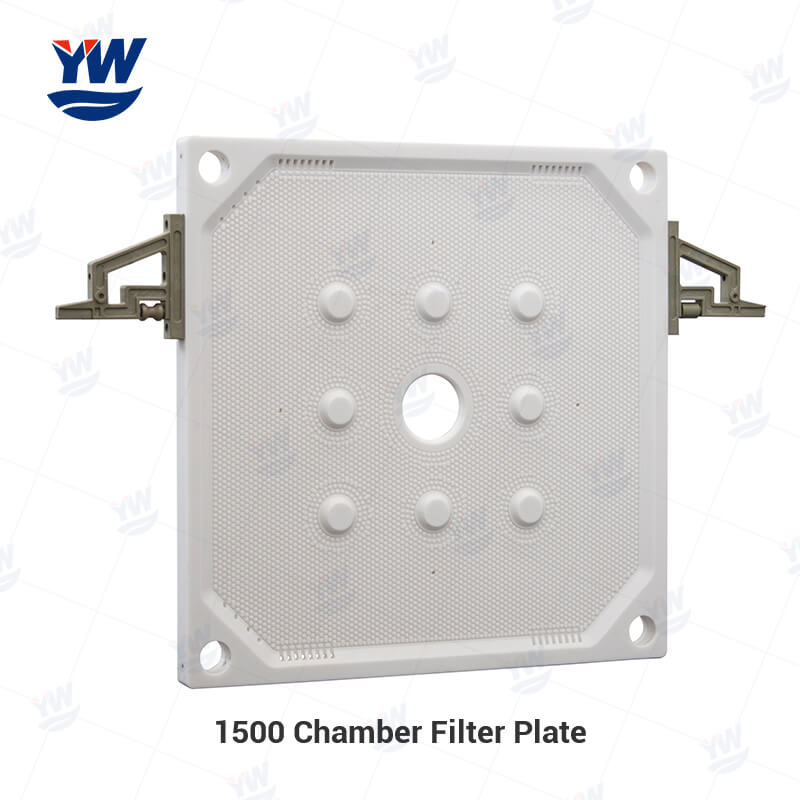

Chamber	320mm	380mm	320mm	30mm	45mm	35mm	50mm	11mm	4.5kg
	450mm	505mm	450mm	30mm	50mm	40mm	80mm	27mm	8.5kg
	630mm	705mm	630mm	30mm	50mm	60mm	100mm	16mm	17kg
	800mm	800mm	725mm	30mm	60mm	60mm	100mm	24mm	27kg

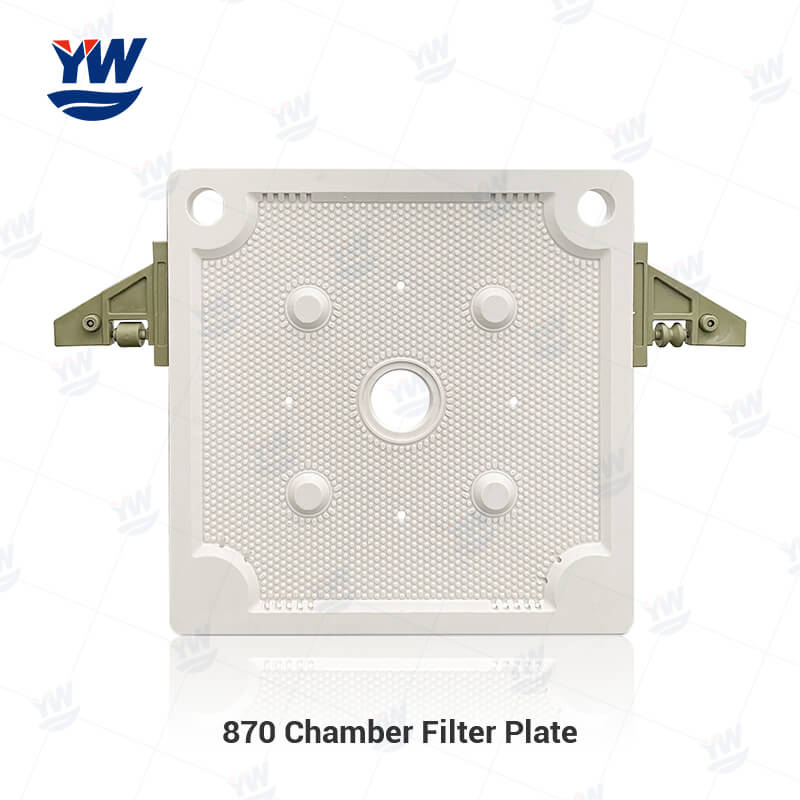

	870mm	870mm	800mm	30mm	55mm	70mm	100mm	18mm	27kg
	900mm	900mm	820mm	30mm	60mm	60mm	100mm	20mm	39kg
	1000mm	1000mm	920mm	30mm	60mm	60mm	120mm	28mm	39kg
	1250mm	1250mm	1150mm	30mm	65mm	75mm	150mm	35mm	67kg
	1500mm	1500mm	1390mm	30mm	70mm	80mm	180mm	45mm	100kg
	2000mm	2000mm	1860mm	30mm	85mm	100mm	200mm	40mm	200kg
Plate & frame	320mm	380mm	320mm	30mm	30mm	35mm			13.5kg
	450mm	505mm	430mm	30mm	30mm	50mm			21.6kg
	630mm	710mm	630mm	30mm	30mm	65mm			42.5kg
	890mm	890mm	790mm	35mm	35mm	65mm			70kg
	1000mm	1000mm	900mm	35mm	35mm	65mm			95.5kg

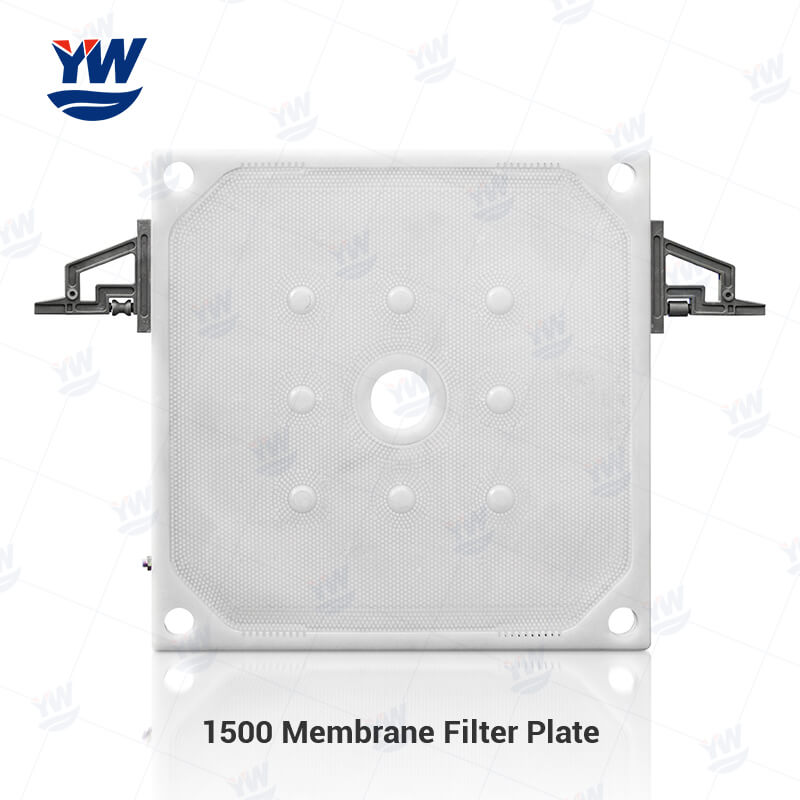

Membrane plate	870mm	870mm	770mm		65mm	50mm	100mm	55mm	38kg
	1000mm	1000mm	890mm		72mm	60mm	100mm	60mm	50kg
	1250mm	1250mm	1140mm		78mm	65mm	120mm	70mm	76kg
	1500mm	1500mm	1380mm		85mm	90mm	180mm	70mm	115kg
Chamber plate (for membrane filter press)	870mm	870mm	770mm	30mm	65mm	50mm	100mm	40mm	38kg
	1000mm	1000mm	890mm	30mm	70mm	60mm	100mm	40mm	52kg
	1250mm	1250mm	1140mm	35mm	75mm	65mm	120mm	40mm	85kg
	1500mm	1500mm	1380mm	35mm	80mm	90mm	180mm	40mm	125kg
Cast iron	1000mm	1000mm			35mm

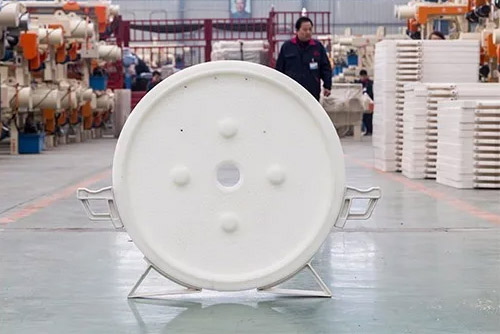

Round Plate	800mm	810mm			55mm		84mm		25kg

Technical Data

Format	Standard sizes: 250, 400, 470, 500, 630, 800, 915, 1000, 1067, 1200, 1300, 1450, 1470, 1500, 1500 x 2000 und 2000 x 2000 mm. These formats are available in open and closed designs. Larger and alternative formats available upon request.
Feed eye position	Standard feeds: Centralised feed, decentralised feed, corner feed, external feed, position eye In general, any feed eye design is possible and can be made according to customer requirements.
Pressure	Standard products are suitable for a maximum filtration pressure of 8 or 16 bar depending on the product. Special products for pressure levels of 30 bar and higher are available.
Temperatures	Maximum permissible filtration temperatures depend, among other things, on filtration pressures, chemical composition of the slurry to be filtered, cycle times and choice of material.
Materials	Yuwei filter plates are available in the following materials according to intended use:Polypropylene homopolymers, Polypropylene homopolymers FDA, Antistatic polypropylene, PVDF.
