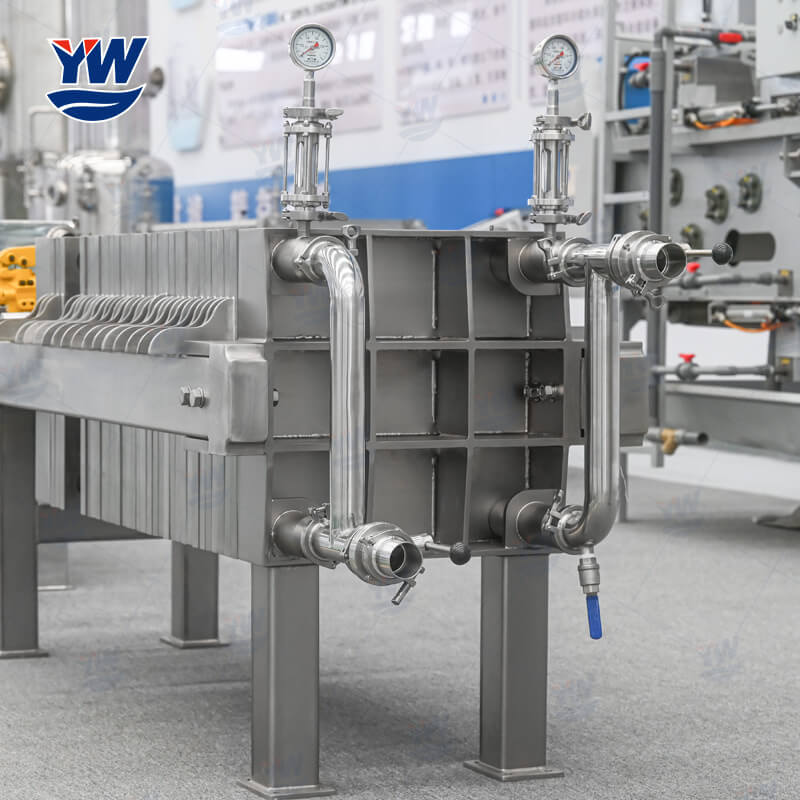

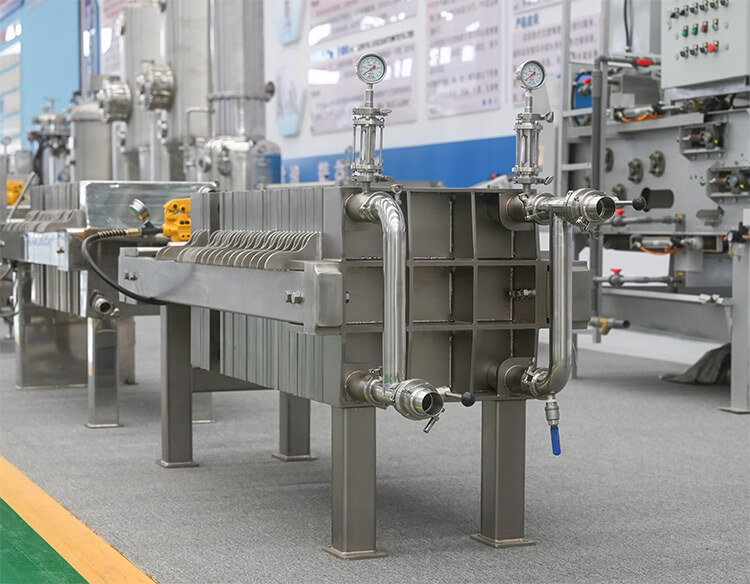

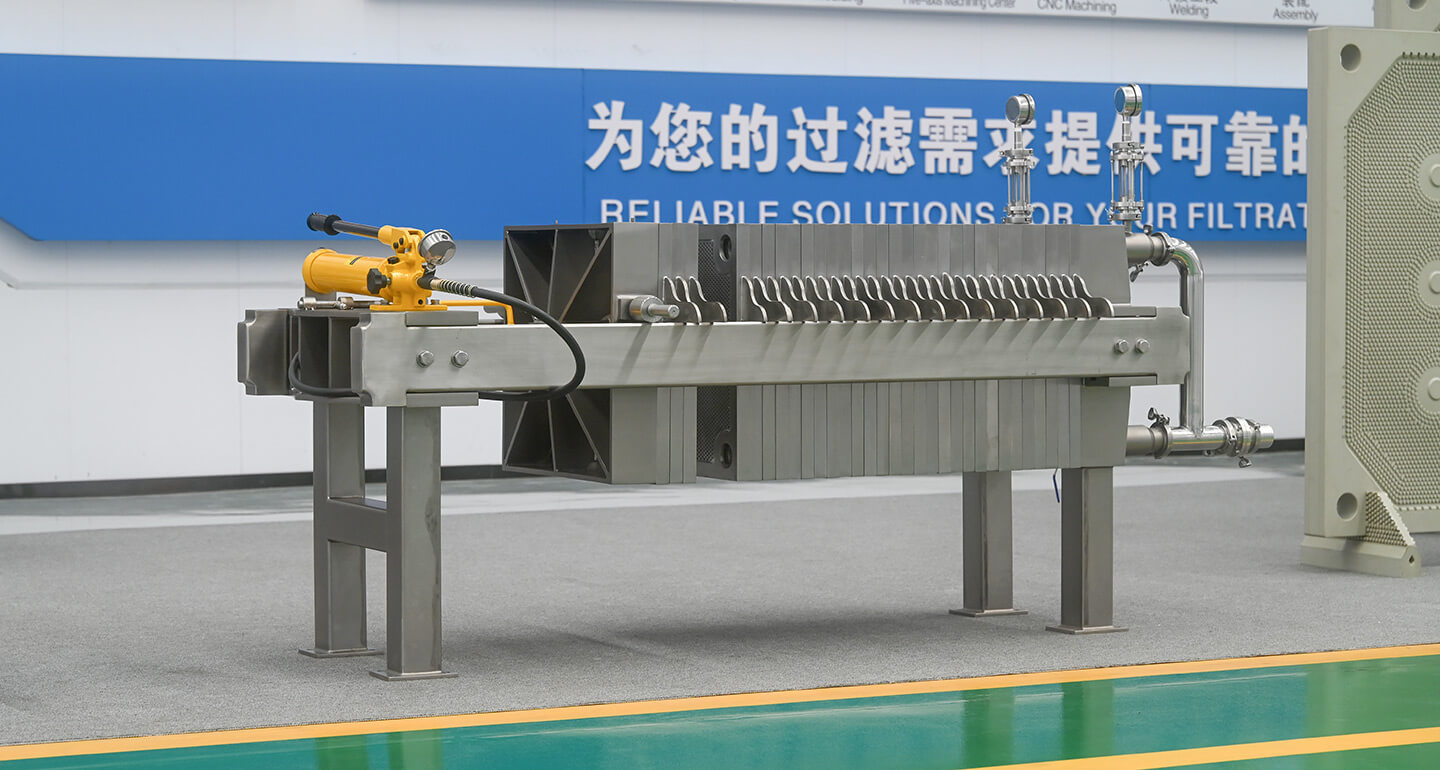

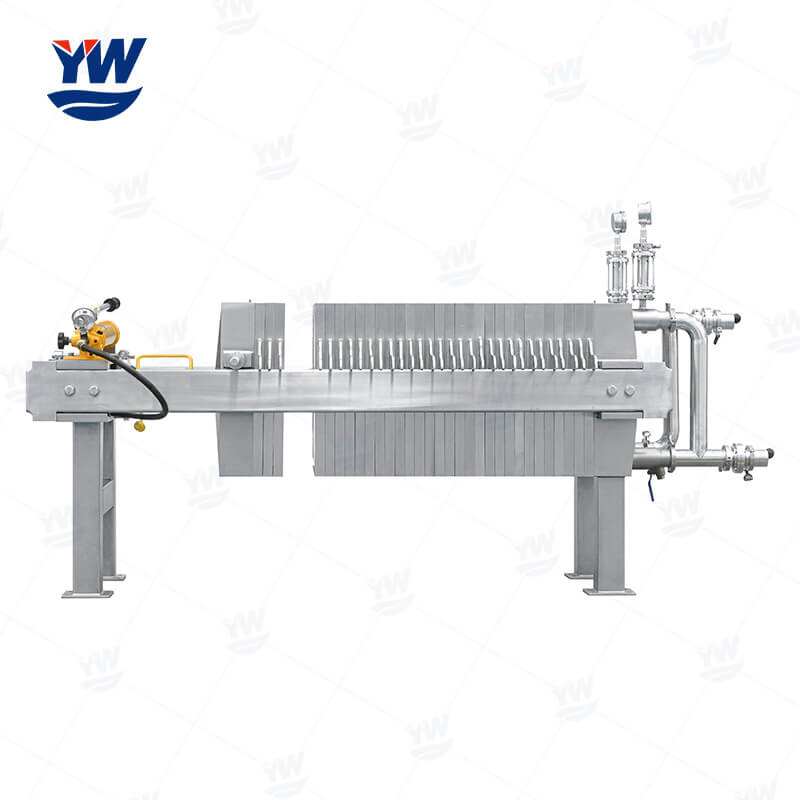

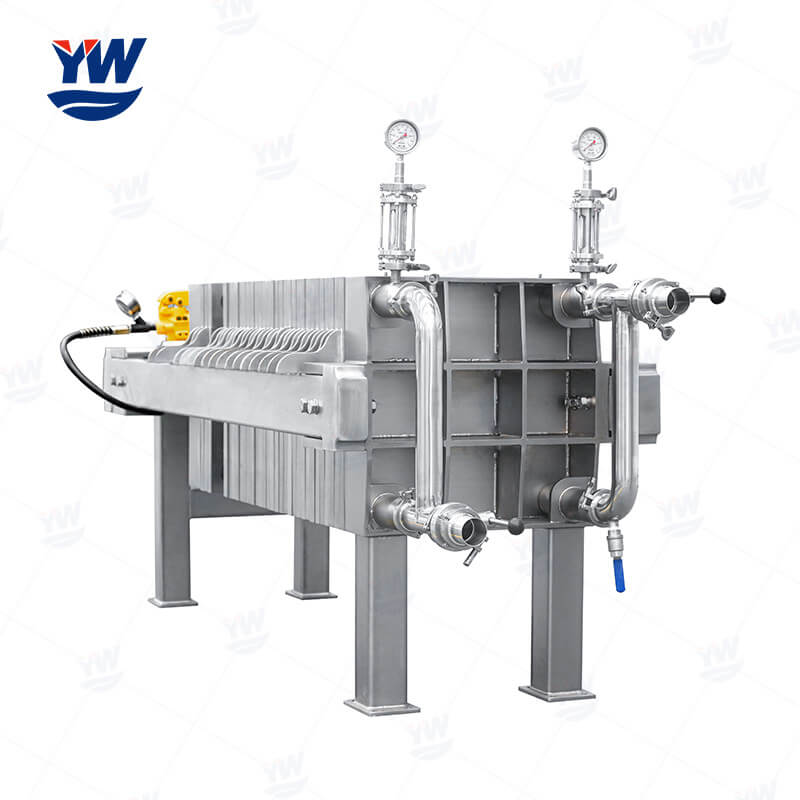

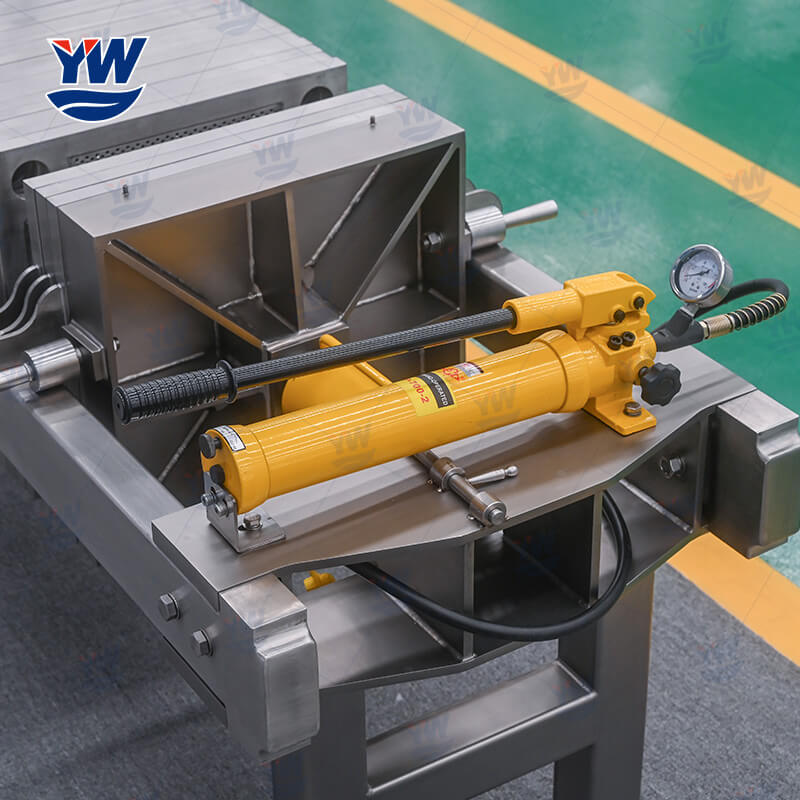

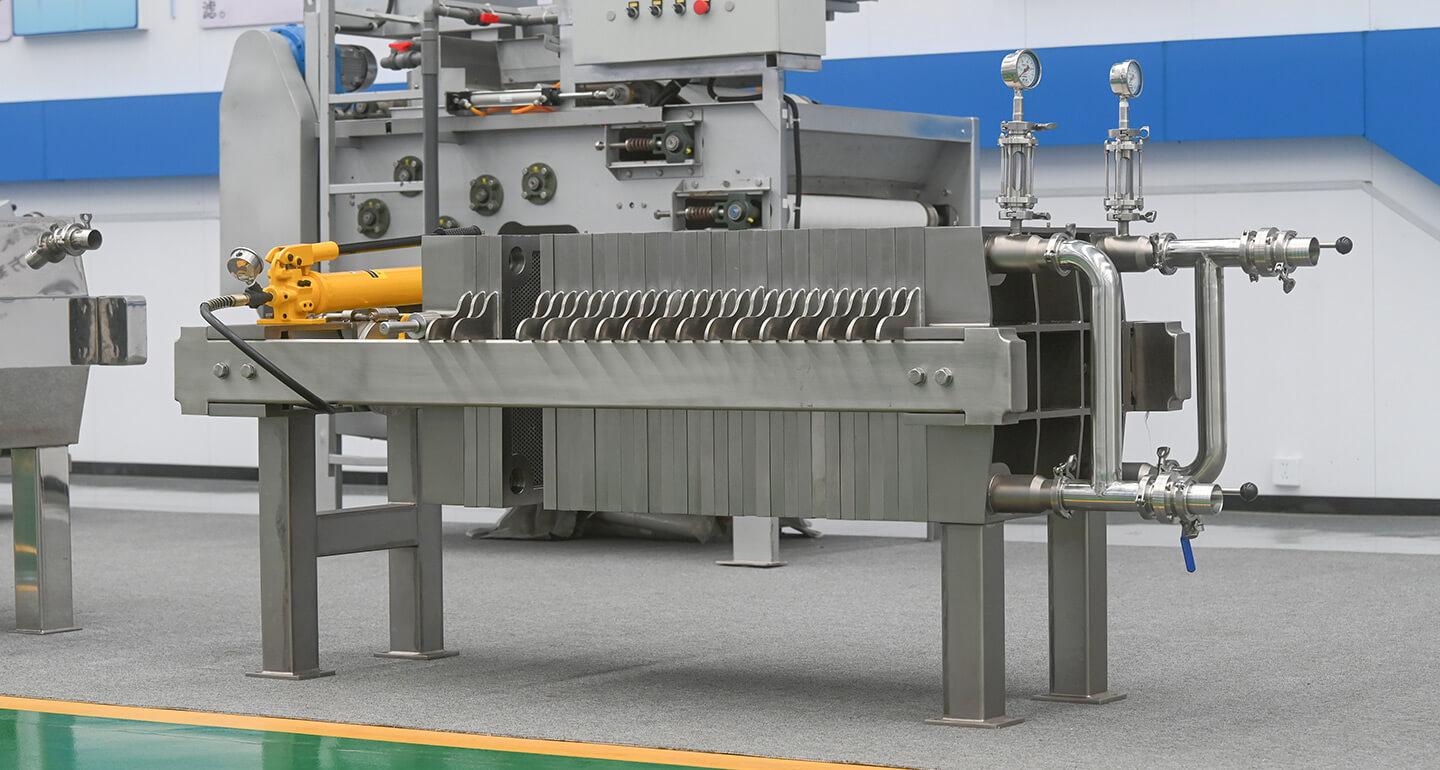

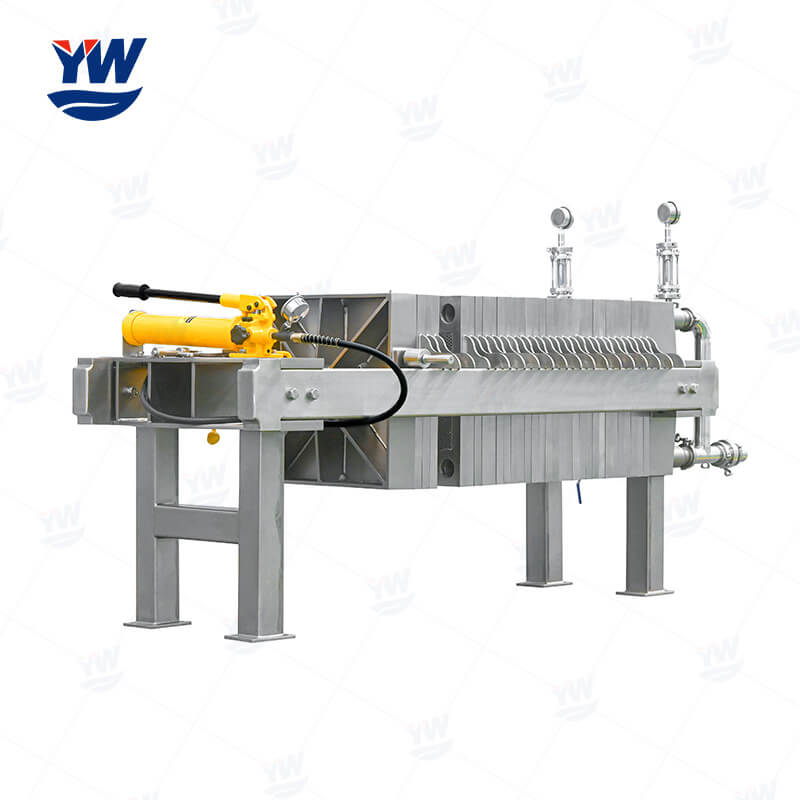

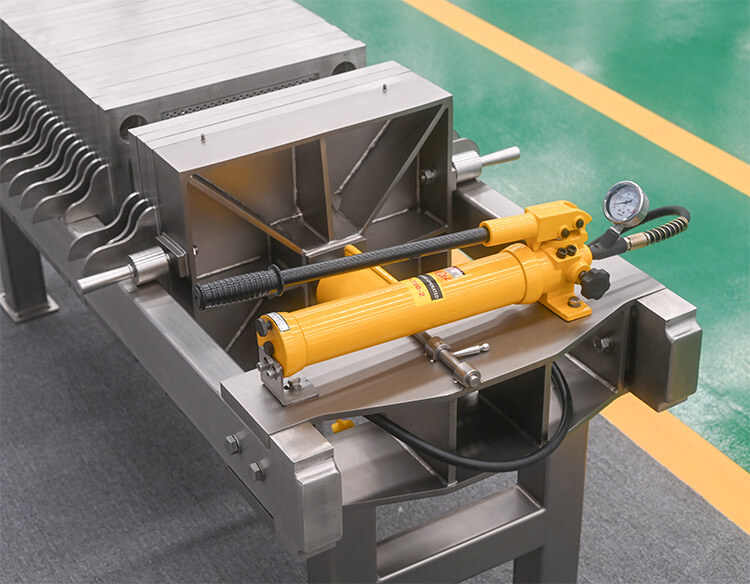

Manual Hydraulic Stainless Steel Plate and Frame Filter Press

Description

Stainless steel plate and frame filter press is the best choice for applications with corrosive, high temperature, high pressure and high hygiene requirements, and is especially irreplaceable in the fields of chemical, pharmaceutical, food, new energy and so on.

Details

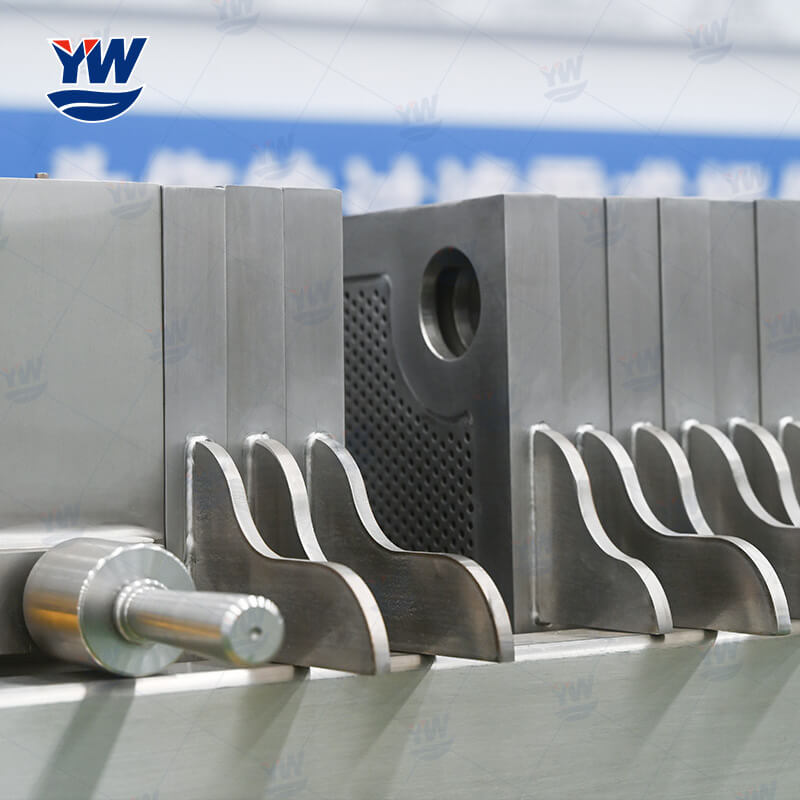

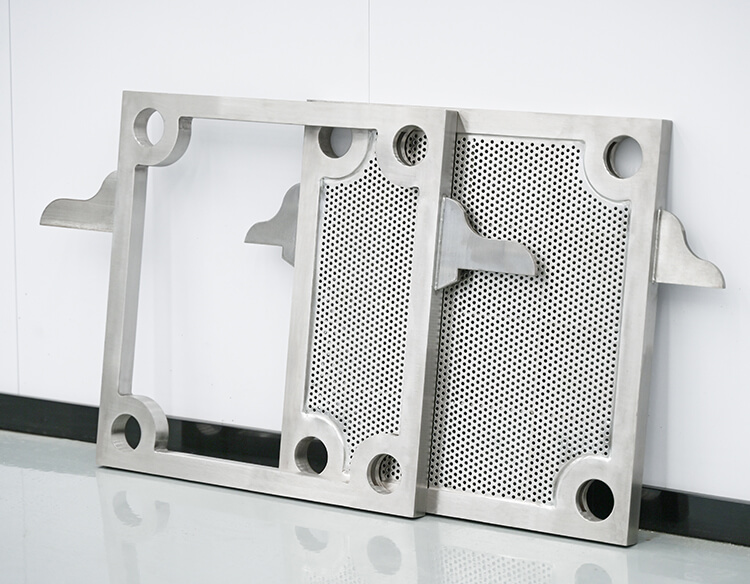

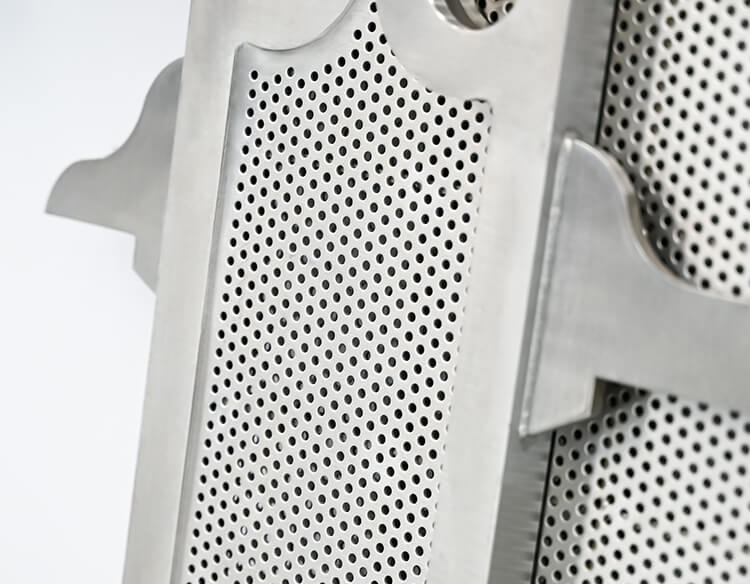

Stainless Steel Filter Plate

Specification

Model	Filter area (m²)	Plate size (mm)	Filter chamber volume (L)	Plate Qty. (Pcs)	Frame Qty. (Pcs)	Weight (kg)	Dimensions L*W*H (mm)
BAQ1/320	1	320*320	13	4	5	300	1050*700*680
BAQ2/320	2		25	9	10	440	1405*700*680
BAQ3/320	3		38	14	15	600	1650*700*680
BAQ4/450	4	450*450	51	9	10	780	1680*880*900
BAQ6/450	6		76	14	15	995	1980*880*900
BAQ8/450	8		102	19	20	1250	2180*880*900
BAQ10/450	10		122	24	25	1470	2430*880*900
BAQ12/450	12		152	29	30	1700	2680*880*900
BAQ16/450	16		203	39	40	2170	3180*880*900
BAY4/450	4		51	9	10	850	2030*880*900
BAY6/450	6		76	14	15	1070	2280*880*900
BAY8/450	8		102	19	20	1950	2530*880*900
BAY10/450	10		122	24	25	2170	2780*880*900
BAY12/450	12		152	29	30	2400	3030*880*900
BAY16/450	16		203	39	40	2870	3530*880*900
BAQ10/610	10	550*550	122	15	16	2030	2180*950*1010
BAQ12/610	12		152	19	20	2290	2380*950*1010
BAQ15/610	15		189	24	25	2610	2630*950*1010
BAQ20/610	20		250	32	33	3120	3030*950*1010
BAY10/610	10		122	15	16	2730	2230*950*1010
BAY12/610	12		152	19	20	2990	2430*950*1010
BAY15/610	15		189	24	25	3310	2680*950*1010
BAY20/610	20		250	32	33	3820	3080*950*1010
BAQ15/630	15	630*630	189	18	19	2620	2325*950*1010
BAQ20/630	20		250	24	25	3100	2630*950*1010
BAQ30/630	30		377	37	38	4130	3280*950*1010
BAY15/630	15		189	18	19	2870	2630*950*1010
BAY20/630	20		250	24	25	3950	2930*950*1010
BAY30/630	30		377	37	38	4980	3580*950*1010
BAY30/800	30	725*725	442	22	23	5710	3150*1300*1300
BAY40/800	40		595	30	31	7126	3630*1300*1300
BAY50/800	50		748	38	39	8543	4110*1300*1300

Applications

Chemical Industry

• Strong acid/alkaline waste liquid treatment
• Organic solvent recovery

Pharmaceuticals and Bioengineering

• Aseptic API production
• Biological fermentation liquid treatment

Food and Beverage Industry

• Dairy product processing: whey protein separation, casein dehydration
• Brewing and fermentation: beer spent grains pressing, soy sauce residue dehydration
