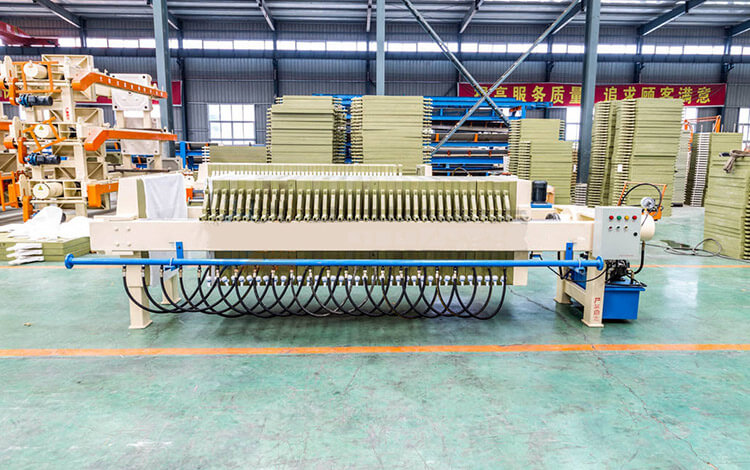

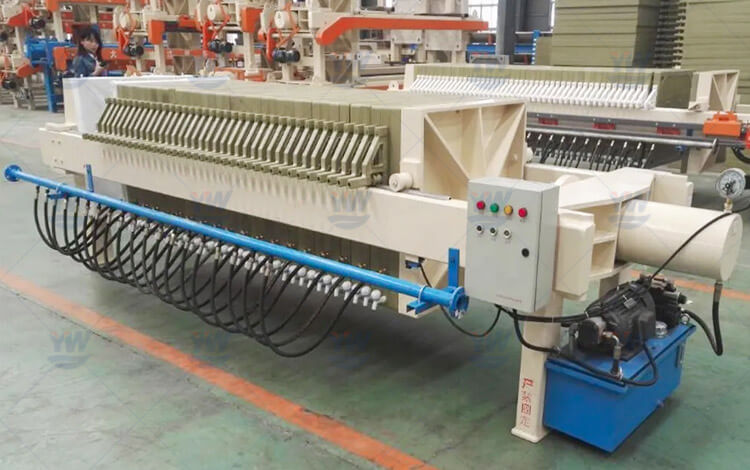

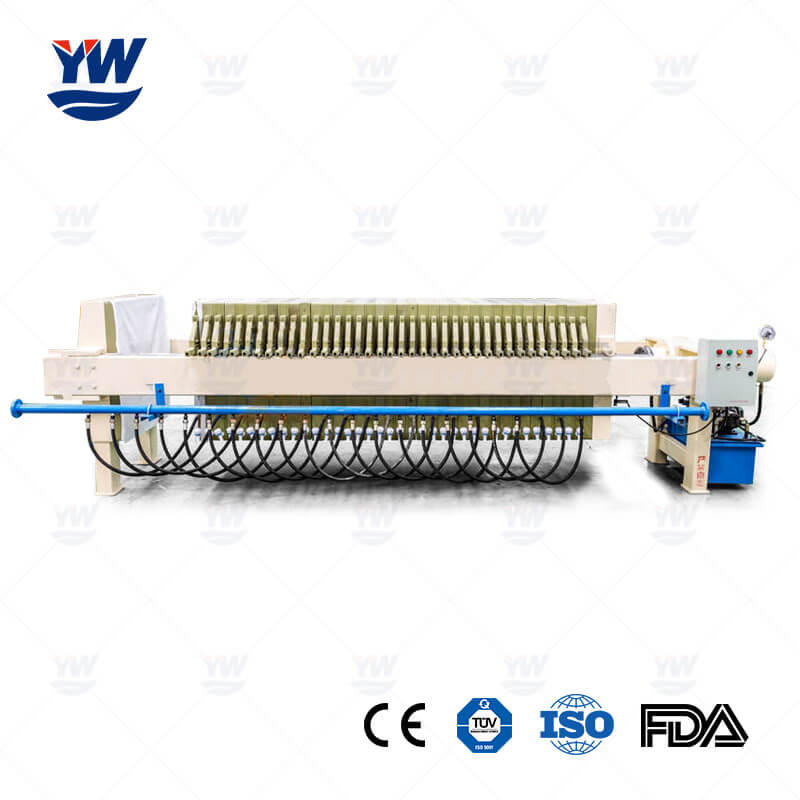

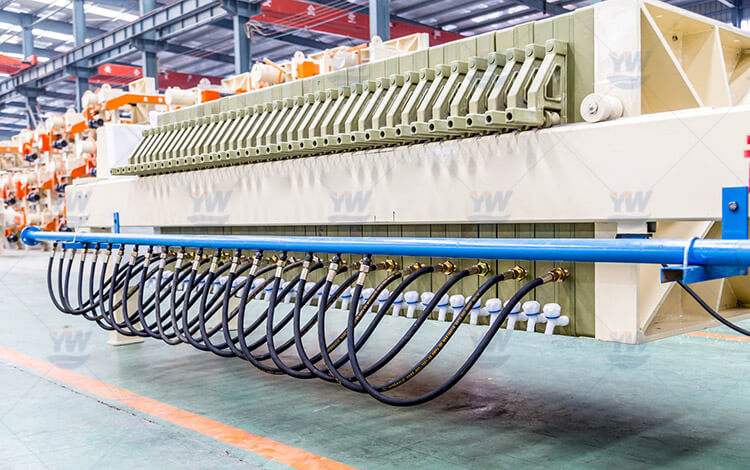

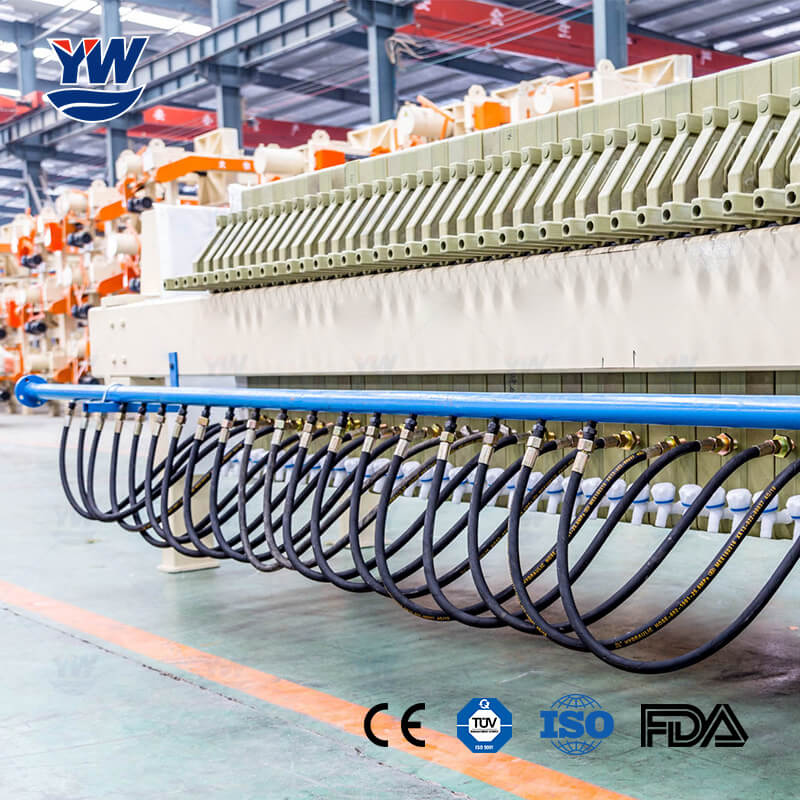

Models : Membrane Filter Press
Material : Carbon Steel
Beam : Iron Coating Q235
Voltage : 220-380V
Plate Shiting : Automatic
Control : PLC
Filtration Pressure : ≥0.8Mpa
Model | Filtration area (m²) |
Plate size (mm) |
Cake thickness (mm) |
Filter chamber volume (L) |
Plate Qty. (pcs.) |
Motor power (Kw) |
Weight (Kg) |
Dimensions L*W*H(mm) |
G30/870-U | 30 | 870*870 | ≤35 | 498 | 23 | 2.2 | 3046 | 3880*1250*1300 |
G40/870-U | 40 | 623 | 29 | 3593 | 4270*1250*1300 | |||
G50/870-U | 50 | 789 | 37 | 4057 | 4790*1250*1300 | |||
G60/870-U | 60 | 955 | 45 | 4597 | 5310*1250*1300 | |||
G70/870-U | 70 | 1121 | 53 | 5136 | 5830*1250*1300 | |||
G80/870-U | 80 | 1287 | 61 | 5636 | 6350*1250*1300 | |||
G50/1000-U | 50 | 1000*1000 | 776 | 27 | 4 | 4352 | 4270*1500*1400 | |
G60/1000-U | 60 | 943 | 33 | 4480 | 4700*1500*1400 | |||
G70/1000-U | 70 | 1109 | 39 | 5263 | 5130*1500*1400 | |||
G80/1000-U | 80 | 1275 | 45 | 5719 | 5560*1500*1400 | |||
G100/1000-U | 100 | 1608 | 57 | 6555 | 6410*1500*1400 | |||
G120/1000-U | 120 | 1941 | 69 | 7466 | 7260*1500*1400 | |||
G80/1250-U | 80 | 1250*1250 | ≤40 | 1560 | 29 | 5.5 | 10900 | 4830*1800*1600 |
G100/1250-U | 100 | 1975 | 37 | 11750 | 5440*1800*1600 | |||
G120/1250-U | 120 | 2391 | 45 | 12600 | 6060*1800*1600 | |||
G150/1250-U | 150 | 2911 | 55 | 13620 | 6820*1800*1600 | |||
G160/1250-U | 160 | 3119 | 59 | 14470 | 7130*1800*1600 | |||
G200/1250-U | 200 | 3847 | 73 | 15320 | 8200*1800*1600 | |||
G240/1250-U | 240 | 4679 | 89 | 16170 | 9420*1800*1600 | |||
G250/1250-U | 250 | 4783 | 91 | 17020 | 9570*1800*1600 | |||
G200/1500-U | 200 | 1500*1500 | 3809 | 49 | 11 | 26120 | 7140*2200*1820 | |
G250/1500-U | 250 | 4723 | 61 | 26930 | 7730*2200*1820 | |||
G300/1500-U | 300 | 5637 | 73 | 28160 | 8720*2200*1820 | |||
G350/1500-U | 350 | 6551 | 85 | 29600 | 10110*2200*1820 | |||
G400/1500-U | 400 | 7618 | 99 | 31500 | 11260*2200*1820 | |||
G450/1500-U | 450 | 8532 | 111 | 33400 | 12250*2200*1820 | |||
G500/1500-U | 500 | 9446 | 123 | 33380 | 13240*2200*1820 | |||
G600/2000-U | 600 | 2000*2000 | 11901 | 85 | 15 | 54164 | 13030*3000*2500 | |
G700/2000-U | 700 | 13838 | 99 | 58300 | 14390*3000*2500 | |||
G800/2000-U | 800 | 14945 | 107 | 62460 | 15770*3000*2500 | |||
G900/2000-U | 900 | 17713 | 127 | 66620 | 17150*3000*2500 | |||
G1000/2000-U | 1000 | 19651 | 141 | 70780 | 18530*3000*2500 |
