Material: PP,PPR,PPH,PVC
Filter precision : 1-500(μm)
Filter Area : 0.23-4(m²)
Max Flow : 20-345(t/h)
Working Pressure : 0.25-0.4(Mpa)
Bag QTY : 1-8
Design temperature : <90 °C

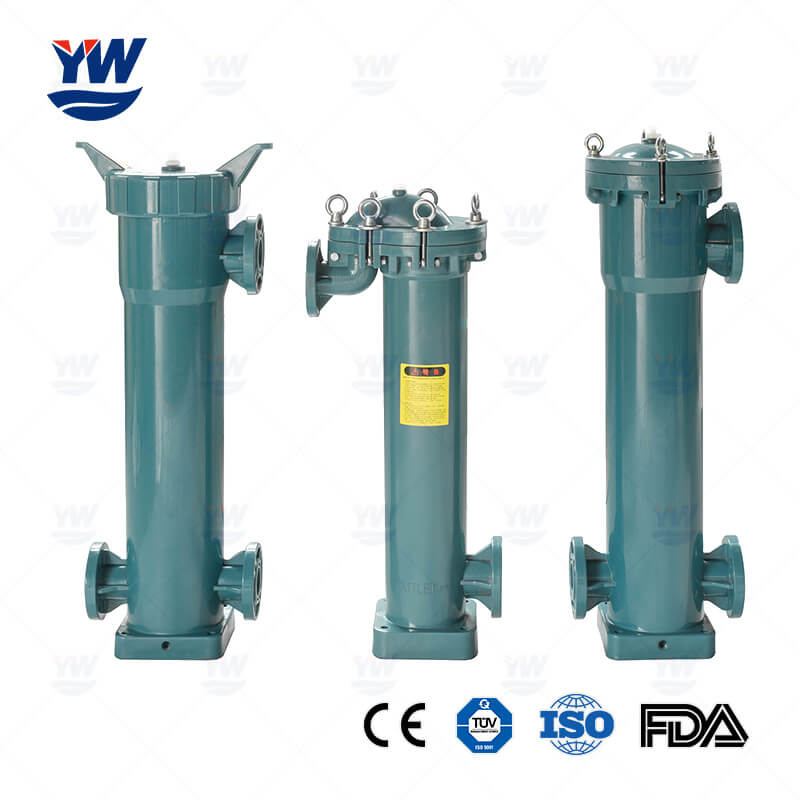

Yuwei PPH(Polypropylene Homopolymer) bag filter housings was made of PP reinforced polypropylene material, which is integrally injection-molded, no metal components to rust or corrode, without welding, no side leakage, easy to install and maintain. The unique one-piece molded body has no seams, welds or crevices to trap particles and is easy to clean.
| Model | Bag QTY (Pcs) |
Working Pressure (Mpa) |
Max Flow (t/h) |
Filtering Area (m²) |
Inlet/Outlet |
| YW-159PP-D | 1 | 0.4 | 20 | 0.23 | DN50 |
| YW-175PP-D | 1 | 0.4 | 32 | 0.25 | DN50 |
| YW-219PP-D | 1 | 0.4 | 40 | 0.5 | DN65 |
| YW-219PPR-D | 1 | 0.6 | 40 | 0.5 | DN65 |
| YW-500PP-2D | 2 | 0.4 | 90 | 1 | DN100 |
| YW-630PP-3D | 3 | 0.4 | 135 | 1.5 | DN100 |
| YW-630PP-4D | 4 | 0.4 | 180 | 2 | DN100 |
| YW-710PP-5D | 5 | 0.4 | 225 | 2.5 | DN100 |
| YW-700PP-6D | 6 | 0.4 | 270 | 3 | DN100 |
| YW-800PP-7D | 7 | 0.25 | 315 | 3.5 | DN100 |
| YW-800PP-8D | 8 | 0.25 | 345 | 4 | DN50 |
PPH plastic filter housings are made of PP reinforced polypropylene material, which can be used for the filtration of strong acids and alkalis such as hydrochloric acid, sulfuric acid, aqua regia, etc.
