Filter precision : 0.5-800μm
Cartridge : candle filter cartridge
Material: S.S 304, 316L, Carbon steel
Warranty of core components :1 Year
Filter area :1-60m2
Design temperature :1-200°C

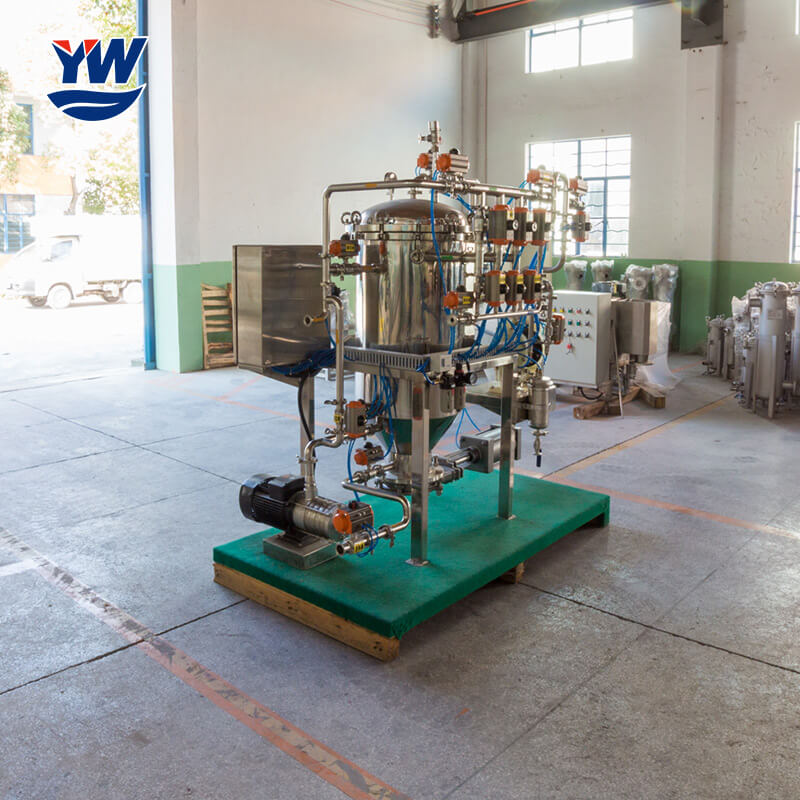

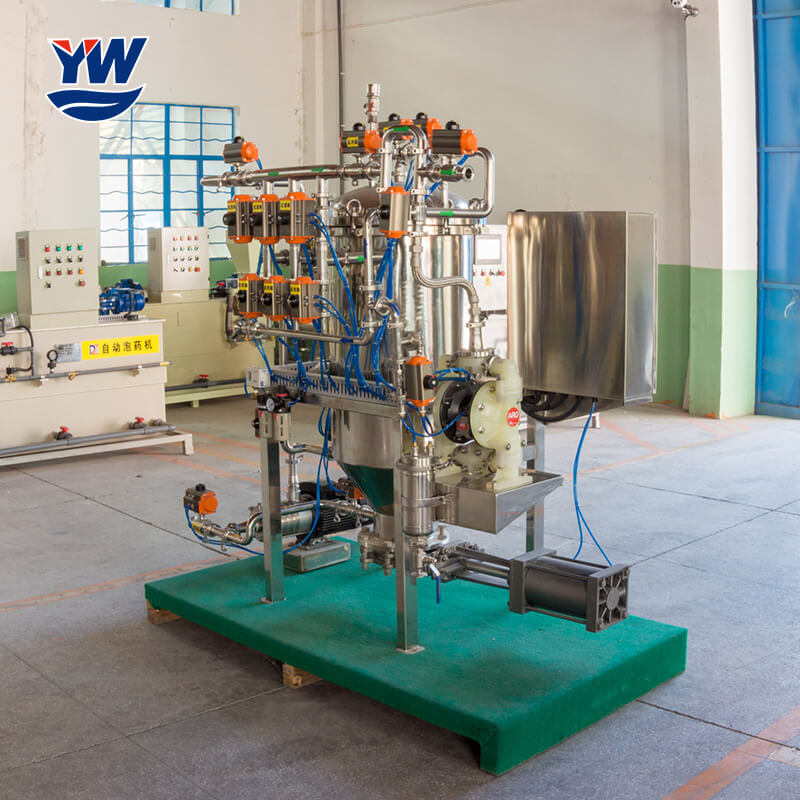

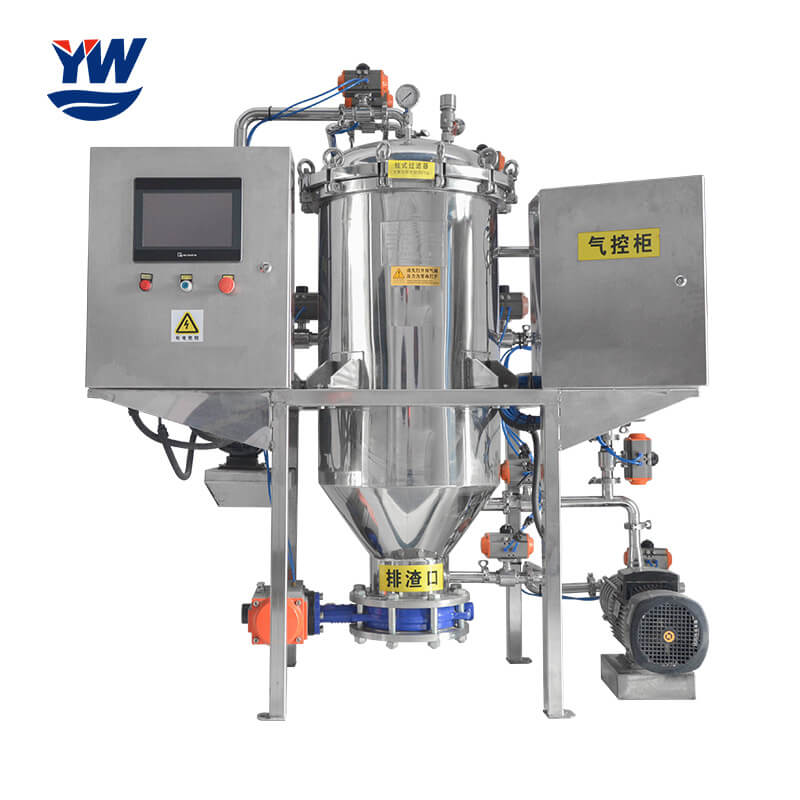

Yuwei candle filters are widely used in medicine industry. In the manufacturing process of pharmaceuticals, it can exhibit superior corrosion & temperature resistance to meet a wide range of chemical reagents and high heat environment.
Compared with the traditional bag filter and manual plate filter, YUWEI candle filter for pharmaceutical use is 100% automated, which is very suitable for filtering flammable, toxic and corrosive materials. The system can automatically recover and filter without stopping the operation of the system, which can effectively avoid downtime and operational safety of personnel.
Model | Cartridge QTY | Cartridge Size (mm) |
Filtering Area (m²) |
Capacity (t/h) |
Housing Volume (L) |
Inlet | Cake Discharging Outlet | Total Height (mm) |
DZZS-1 | 7 | 90*500 | 1 | 2.2 | 140 | DN25 | DN150 | 1902 |
DZZS-1.5 | 10 | 90*500 | 1.5 | 3.3 | 180 | DN25 | DN200 | 1928 |
DZZS-2 | 7 | 90*1000 | 2 | 4.4 | 220 | DN32 | DN150 | 2402 |
DZZS-3 | 10 | 90*1000 | 3 | 6.6 | 280 | DN40 | DN200 | 2428 |
DZZS-4 | 14 | 90*1000 | 4 | 8.8 | 400 | DN40 | DN200 | 2502 |
DZZS-6 | 19 | 90*1000 | 6 | 13.2 | 560 | DN50 | DN250 | 2578 |
DZZS-8 | 24 | 90*1000 | 8 | 18 | 740 | DN65 | DN250 | 2644 |
DZZS-12 | 40 | 90*1000 | 12 | 26 | 1200 | DN65 | DN300 | 2854 |
DZZS-18 | 64 | 90*1000 | 18 | 40 | 1800 | DN80 | DN400 | 2904 |
DZZS-30 | 106 | 90*1000 | 30 | 66 | 3000 | DN100 | DN500 | 3440 |
DZZS-40 | 140 | 90*1000 | 40 | 88 | 3815 | DN150 | DN500 | 3560 |
DZZS-60 | 190 | 90*1000 | 60 | 132 | 5700 | DN150 | DN500 | 3700 |
