Models : Single Cartridge Filter Housing
Materials : SUS316L, SUS304
Filter Cartridge : PP pleated filter cartridge
Filtration Accuracy : 0.1-100μm

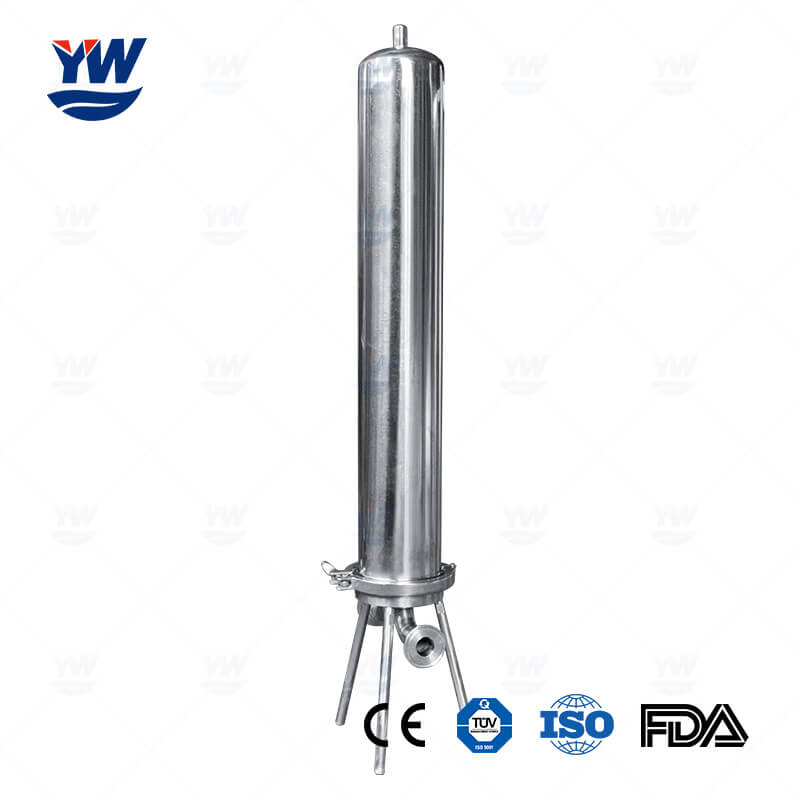

Yuwei SS Single Cartridge Filter Housing is a small flow and high-quality sanitary grade filter. The sanitary single filter housing is designed for the industries and applications which have higher sanitary requests. These filter housings are used in the food, beverage, and electronics sectors of the economy.
Model | Max. flowWater | Diameter of Housing | Height | I/O Connections |
YWLX10-1 | 0.1-0.3m³/h | 102mm | 500mm | 25-32DN |
YWLX20-1 | 0.3-0.5m³/h | 102mm | 750mm | 25-32DN |
YWLX30-1 | 1.2m³/h | 102mm | 1000mm | 25-32DN |
YWLX40-1 | 1.5m³/h | 102mm | 1250mm | 25-32DN |
YWLX10-3 | 1.2m³/h | 160mm | 650mm | 25-40DN |
YWLX20-3 | 1.5m³/h | 160mm | 900mm | 25-40DN |
YWLX30-3 | 3.6m³/h | 160mm | 1150mm | 25-40DN |
YWLX40-3 | 4.5m³/h | 160mm | 1400mm | 25-40DN |
YWLX20-5 | 2.5m³/h | 200mm | 900mm | 25-50DN |
YWLX30-5 | 6m³/h | 200mm | 1150mm | 25-50DN |
YWLX40-5 | 7.5m³/h | 200mm | 1400mm | 25-50DN |
YWLX20-7 | 3.5m³/h | 230mm | 900mm | 25-50DN |
YWLX30-7 | 8.4m³/h | 230mm | 1150mm | 25-50DN |
YWLX40-7 | 10.5m³/h | 230mm | 1400mm | 25-50DN |
YWLX20-9 | 4.5m³/h | 300mm | 900mm | 25-50DN |
YWLX30-9 | 10.8m³/h | 300mm | 1150mm | 25-50DN |
YWLX40-9 | 13.5m³/h | 300mm | 1400mm | 25-50DN |
YWLX20-12 | 6m³/h | 300mm | 900mm | 25-50DN |
YWLX30-12 | 14.4m³/h | 300mm | 1150mm | 25-50DN |
YWLX40-12 | 18m³/h | 300mm | 1400mm | 25-50DN |
YWLX20-15 | 7.5m³/h | 300mm | 900mm | 25-65DN |
YWLX30-15 | 18m³/h | 350mm | 1150mm | 25-65DN |
YWLX40-15 | 22.5m³/h | 350mm | 1400mm | 25-65DN |
YWLX30-20 | 24m³/h | 400mm | 1150mm | 25-65DN |
YWLX40-20 | 30m³/h | 400mm | 1400mm | 25-65DN |
YWLX30-25 | 30m³/h | 450mm | 1150mm | 50-80DN |
YWLX40-25 | 37.5m³/h | 450mm | 1400mm | 50-80DN |
YWLX30-30 | 36m³/h | 500mm | 1500mm | 50-80DN |
YWLX40-30 | 45m³/h | 500mm | 1750mm | 50-80DN |
YWLX30-35 | 42m³/h | 550mm | 1500mm | 50-100DN |
YWLX40-35 | 52.5m³/h | 550mm | 1750mm | 50-100DN |
YWLX30-40 | 48m³/h | 600mm | 1500mm | 50-100DN |
YWLX40-40 | 60m³/h | 600mm | 1750mm | 50-100DN |
YWLX40-60 | 90m³/h | 700mm | 1750mm | 50-100DN |
YWLX40-80 | 120m³/h | 800mm | 1750mm | 50-100DN |
YWLX40-100 | 150m³/h | 900mm | 1750mm | 50-125DN |
As a high-standard sanitary filter housing, it can be widely used in various industries and applications. Such as prefltration of various antibiotic and other liquids in the pharmaceutical industry. The filtration of alcohol, mineral water, and drinking water in food & beverage industry is also available. Oilfield water injection filtration in the petroleum industry and prefiltration for high-purity water in the electronics industry can adopt this filter housing. Additionally, it is suitable for the filtration of various organic solvents, acids and lyes.
