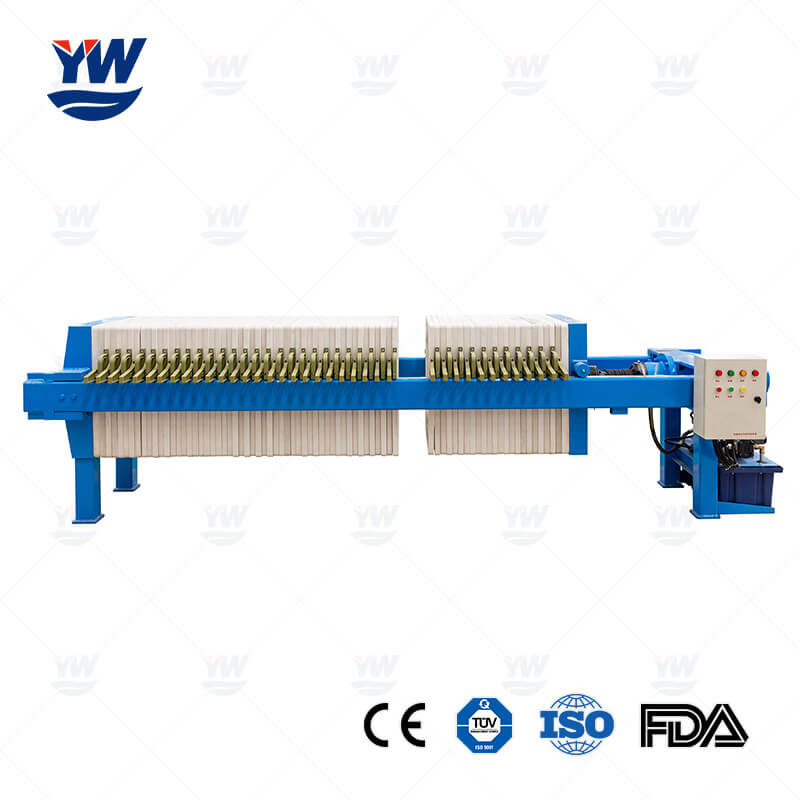

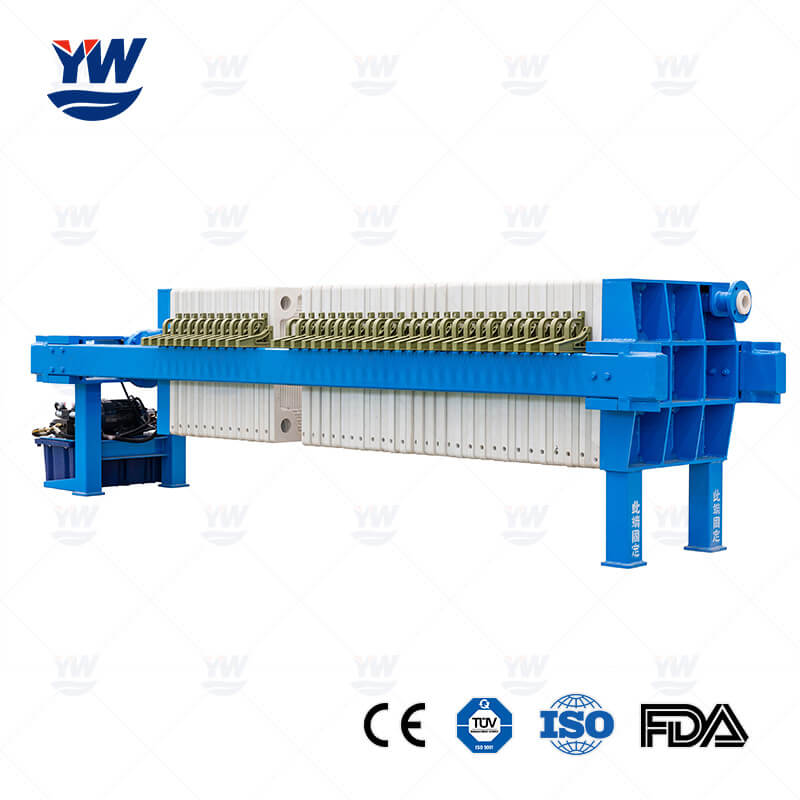

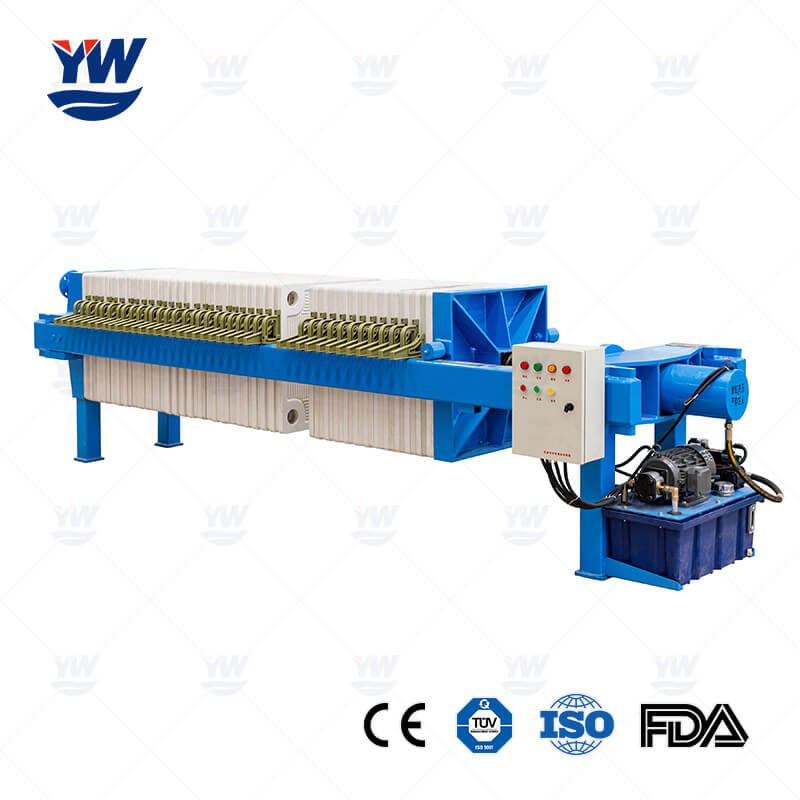

Hydraulic Plate and Frame Filter Press-Yuwei Filtration Equipment Co., Ltd.

Product Description

The plate frame filter press is the most traditional filter press. Generally, for the filter presses, the filter medium is the filter press cloth. But for the plate frame filter press, except for the filter cloth, it can use the filter paper to realize fine filtration or even ultra-filtration. But the plate frame filter press can not bear the higher filtering pressure. And it only can discharge cakes manually, so the model normally is not very big. The max filter plate size is 1000mm. It's mainly for the laboratory and fine chemical industries.

Machine frame Construction

The standard material is carbon steel. An optional FDA approved food grade SS304, SSS316L, SS904L material.

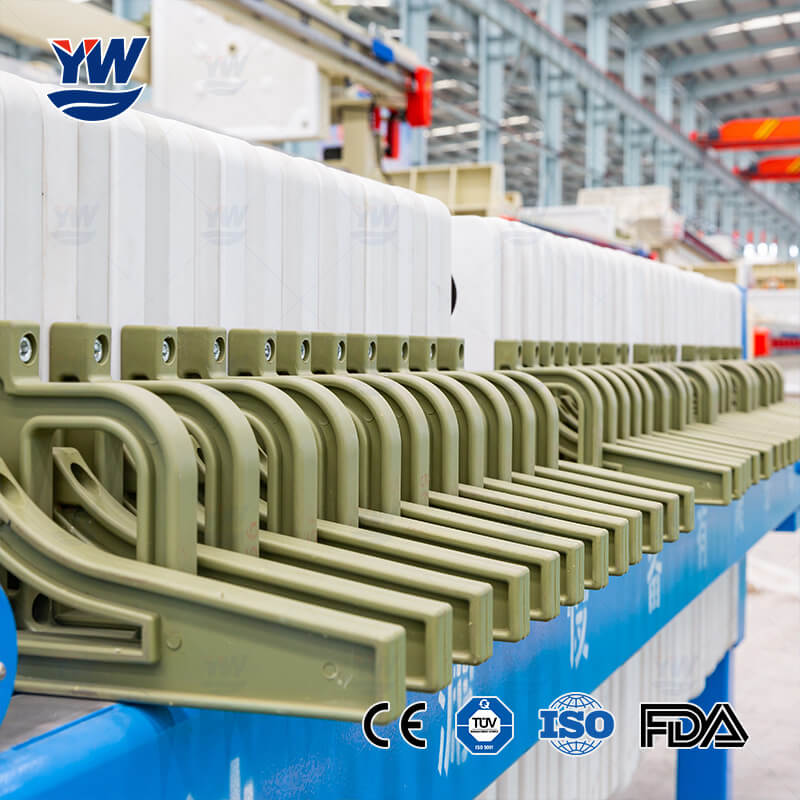

Plate Construction

Select the type of filter plate material. The standard material is an industrial grade polypropylene. An optional FDA approved food grade polypropylene material, or a high temperature glass filled polypropylene material are also available. Special materials are also available such as Carbon Steel , Stainless steel and Kynar.

We offer German Standard Filter Plate

For different applications, we can modify base material by adding different additives or modifiers, to improve filter plate’s chemical resistance and mechanical strength under the condition of high corrosive, high temperature or high pressure.

If necessary, plate surface or filtrate discharge channels can be polished to Ra 0.8.

Features

Plate and frame filter press can replace different filter materials according to the requirements of different filter media and production process (primary filter, semi-fine filter, fine filter). The purpose of aseptic filtration can be achieved by directly using micro-porous filter membrane.

Specification

Model	Filter Area	Plate size	Volume	Plate QTY	Frame Qty	Filtrtion Pressure	Motor Power	Weight	Dimensions
BY4/450-30U	4m²	500×500mm	60L	9pcs	10pcs	≤0.5MPa	2.2Kw	860Kg	2080×800×900mm
BY6/450-30U	6m²		91L	14pcs	15pcs			910Kg	2380×800×900mm
BY8/450-30U	8m²		121L	19pcs	20pcs			960Kg	2680×800×900mm
BY10/450-30U	10m²		151L	24pcs	25pcs			1010Kg	2980×800×900mm
BY12/450-30U	12m²		182L	29pcs	30pcs			1060Kg	3280×800×900mm
BY15/450-30U	15m²		225L	36pcs	37pcs			1130Kg	3700×800×900mm
BY16/450-30U	16m²		243L	39pcs	40pcs			1160Kg	3880×800×900mm
BY15/630-30U	15m²	700×700mm	226L	18pcs	19pcs	≤0.5MPa	2.2Kw	1725Kg	2840×1000×1060mm
BY20/630-30U	20m²		297L	24pcs	25pcs			1993Kg	3200×1000×1060mm
BY30/630-30U	30m²		452L	37pcs	38pcs			2360Kg	3980×1000×1060mm
BY40/630-30U	40m²		595L	49pcs	50pcs			2788Kg	4800×1000×1060mm
BY30/890-35U	30m²	890×890mm	524L	23pcs	24pcs	≤0.5MPa	2.2Kw	2580Kg	3740×1385×1250mm
BY40/890-35U	40m²		677L	30pcs	31pcs			2925Kg	4220×1385×1250mm
BY50/890-35U	50m²		852L	38pcs	39pcs			3318Kg	4880×1385×1250mm
BY60/890-35U	60m²		1027L	46pcs	47pcs			3712Kg	5440×1385×1250mm
BY70/890-35U	70m²		1201L	54pcs	55pcs			4106Kg	6000×1385×1250mm
BY80/890-35U	80m²		1376L	62pcs	63pcs			4561Kg	6560×1385×1250mm
