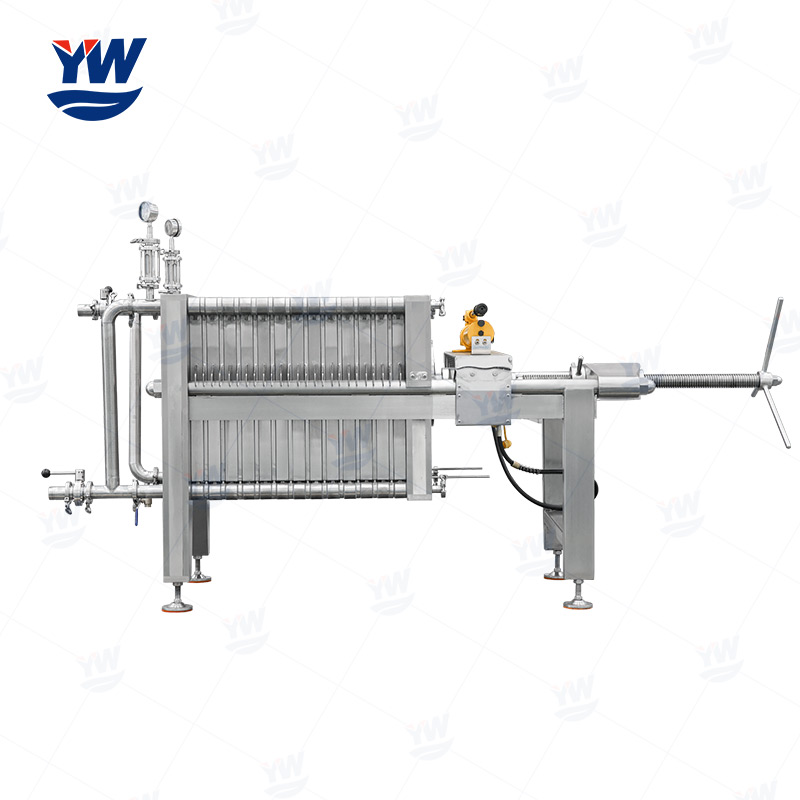

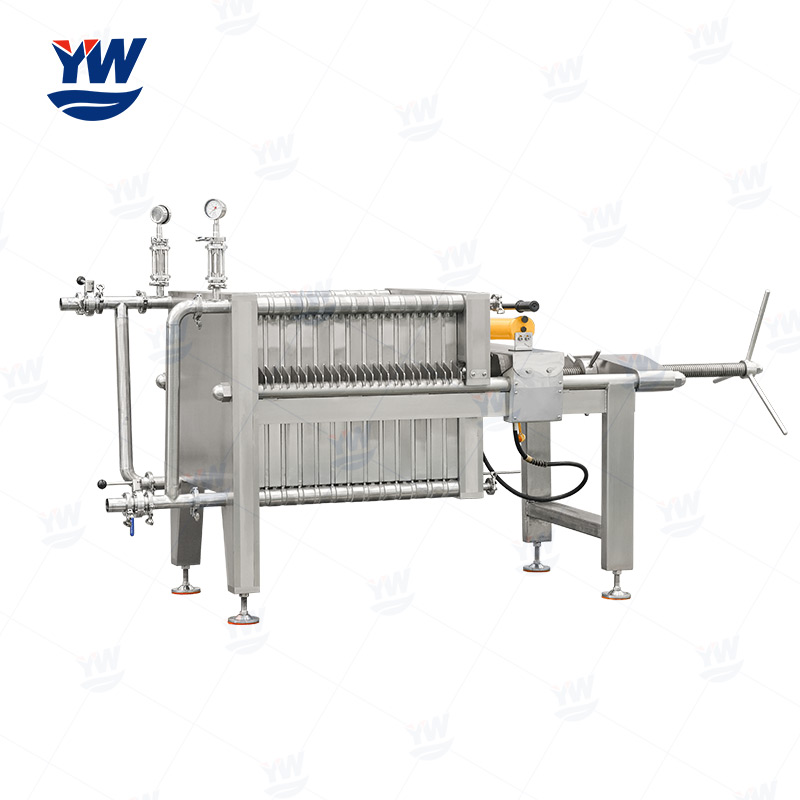

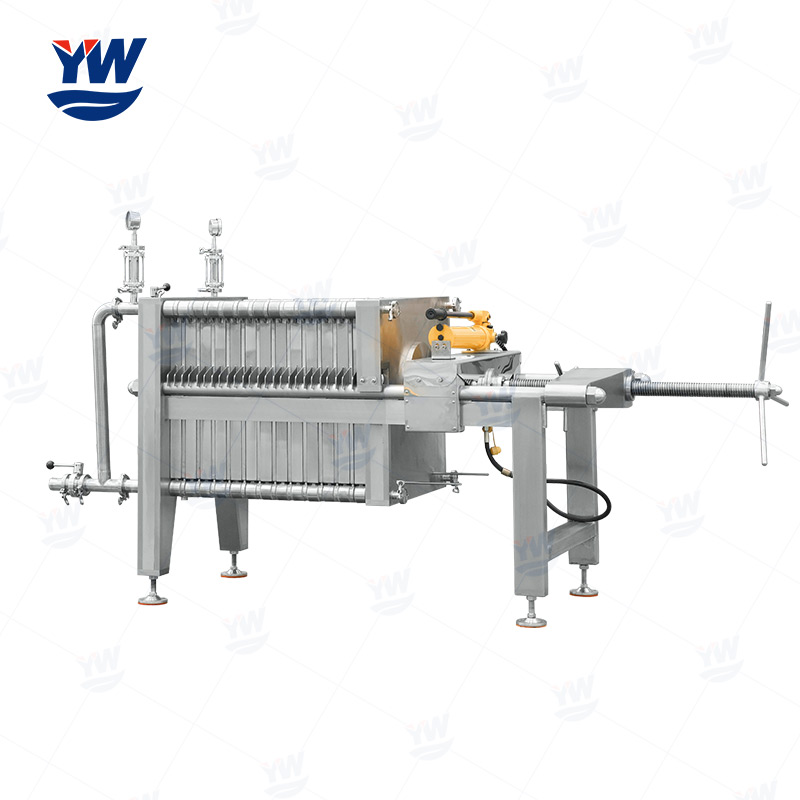

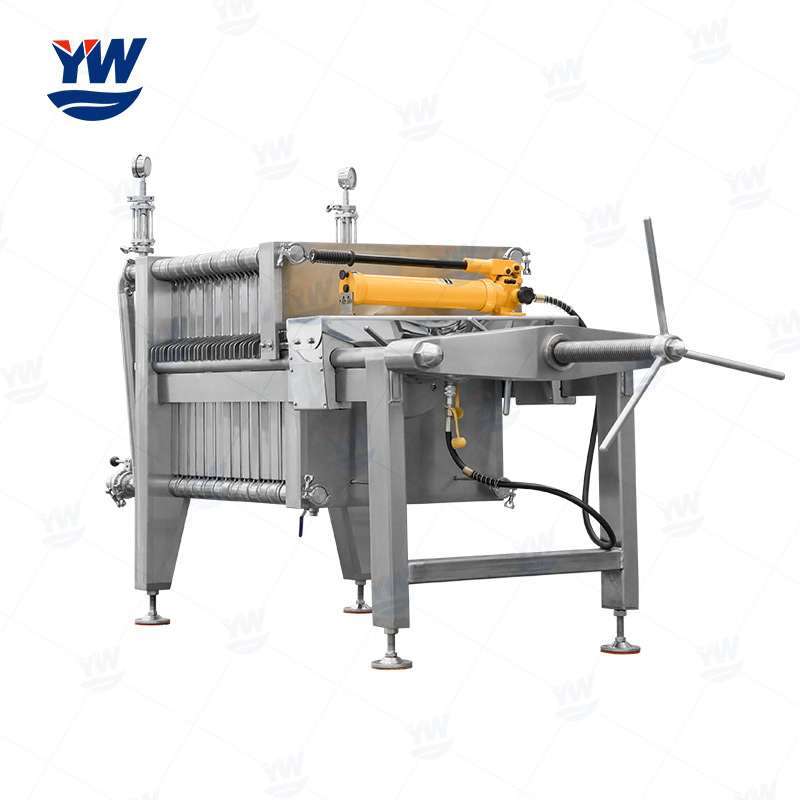

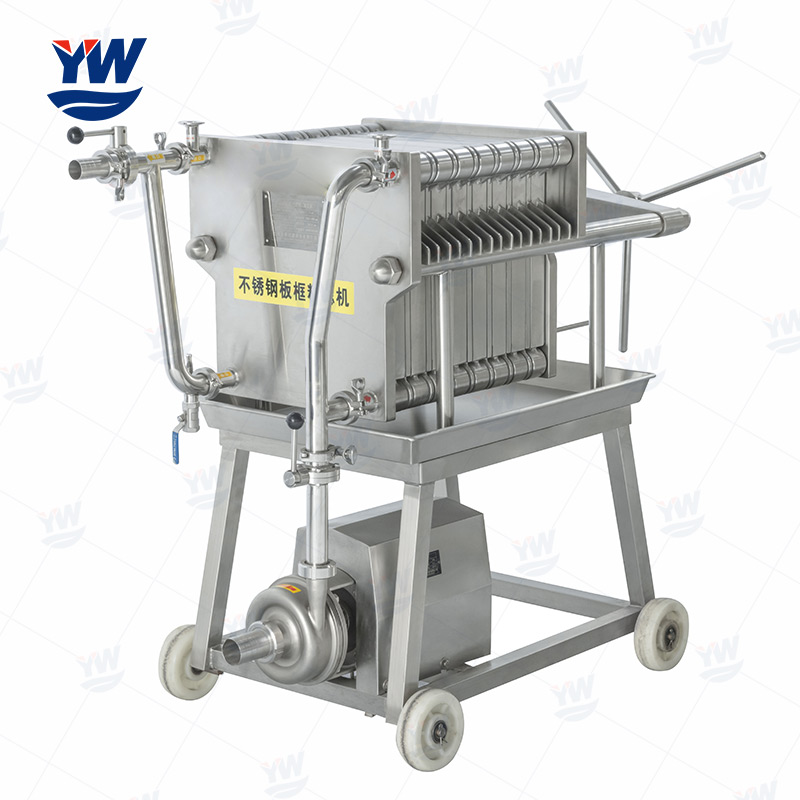

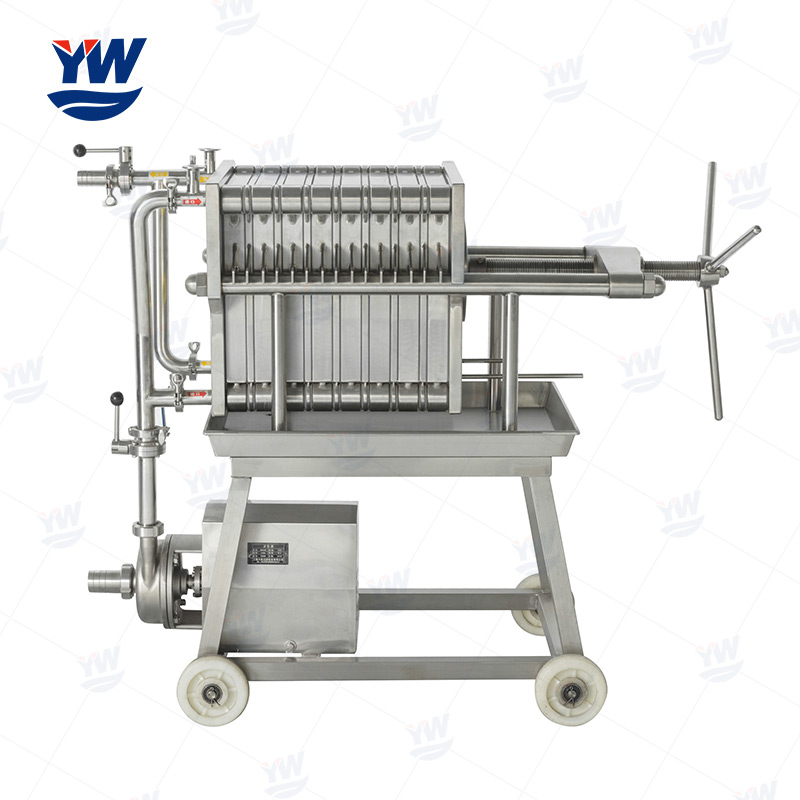

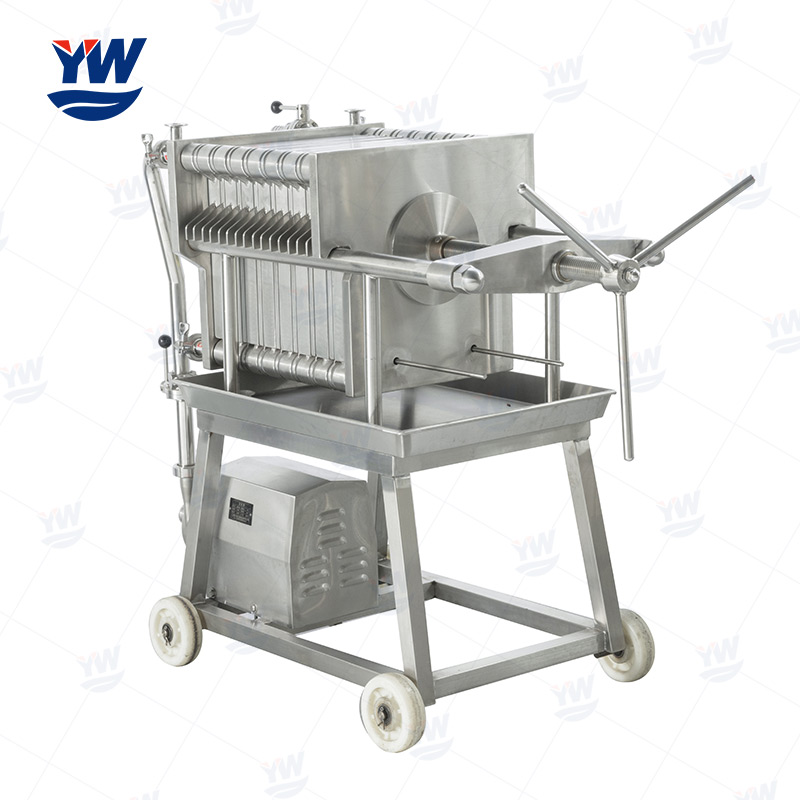

Stainless steel plate and frame diatomite syrup filter press

Description

The stainless steel plate and frame syrup filter press uses diatomite and cardboard (or filter cloth) as the filter medium, and can filter syrup, carbonated drinks and other liquids that are decolorized by adsorption with activated carbon.
The stainless steel plate and frame syrup filter press is mainly suitable for filtering sulfated syrup, fructose syrup, high fructose syrup, glucose syrup and various starch syrups. The turbidity value of the syrup liquid separated by this machine can reach below 0.5EBC. Optional stirring and diatomaceous earth automatic adding systems.

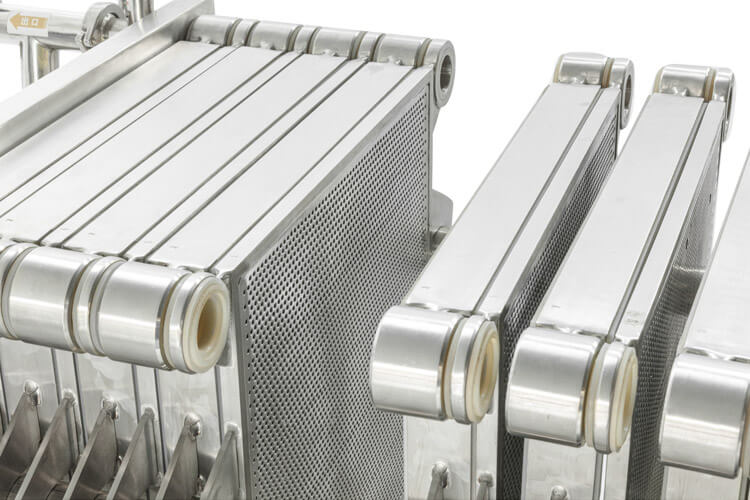

Stainless steel filter plate

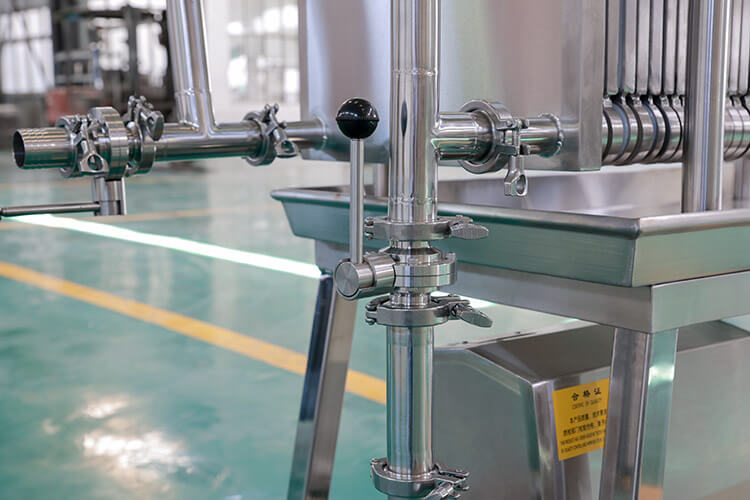

Stainless steel pipeline

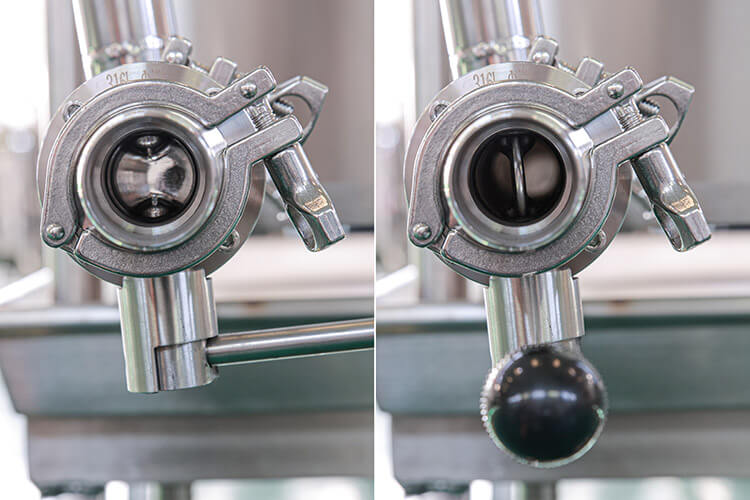

SS316L butterfly valve

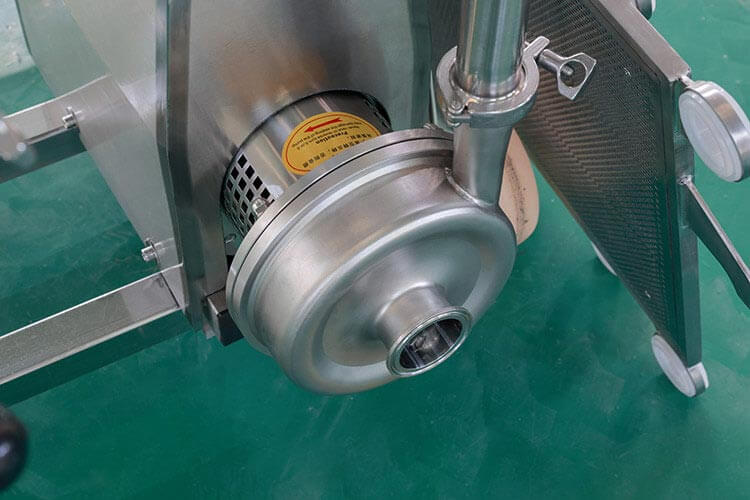

Stainless steel sanitary pump

Features

1. Simple structure, easy to operate and maintain, and the filtration quality is stable and reliable;
2. The hygienic stainless steel diaphragm pressure gauge with silicone oil buffer displays the inlet and outlet pressure, which is intuitive and reliable;
3. The inlet and outlet liquid pipeline system uses food hygiene grade polished pipes, pipe fittings and valves, and the welding uses inert gas shielded welding. The quality fully meets the requirements of GMP/FDA regulations;
4. All metal materials in contact with liquids are made of 304 or 316 stainless steel, with mechanically polished surfaces; all non-metallic materials in contact with liquids (seals and gaskets) are made of food-grade materials (silicone rubber, polytetrafluoroethylene, etc.);

Specification

Model	Layer NO.	Filter area (m²)	Plate size (mm)	Fiter precision (um)	Filtration pressure (MPa)	Flow rate (t/h)	Feeding Pump power (KW)	Dimension (mm)
YWDC-100	10	0.078	φ100	0.22-100	0.3	0.8	0.37	600*300*600
YWDC-150	10	0.17	φ15O	0.22-100	0.3	1.5	0.55	650*380*650
YWDC-200	10	0.34	φ2OO	0.22-100	0.3	2	0.75	650*400*700
YWDC-300	10	0.7	φ300	0.22-100	0.3	4	0.75	700*500*800
YWDC-400	10	1.25	φ4OO	0.22-100	0.3	6	1.1	900*600*1000
YWDC-400	16	2	φ4OO	0.22-100	0.3	9	1.5	1000*600*1000
YWDC-400	20	2.5	φ400	0.22-100	0.3	10	1.5	1100*600*1000
YWDC-400	32	4	φ400	0.22-100	0.3	13	1.5	1320*600*1000
YWDC-200	10	0.4	200x200	0.22-100	0.3	3	0.55	650*380*650
YWDC-300	10	0.9	300x300	0.22-100	0.3	6	0.75	700*500*800
YWDC-400	10	2	400x400	0.22-100	0.3	10	1.1	900*600*1000
YWDC-400	20	3	400x400	0.22-100	0.3	12	1.1	1100*600*1000
YWDC-400	26	4	400x400	0.22-100	0.3	15	1.1	1150*600*1000
YWDC-400	32	5	400x400	0.22-100	0.3	18	1.5	1200*600*1000
YWDC-400	38	6	400x400	0.22-100	0.3	21	1.5	1300*600*1000
YWDC-400	44	7	400x400	0.22-100	0.3	23	1.5	1350*600*1000
