Description

The Yuwei duplex bag filter is perfect for lines that must run continuously or for batch systems that can't be stopped. It features two bag filter housings connected by four individually automatic operated valves.

When the bags in the first housing become full or the pressure difference reaches the set value, the flow automatically switches to the second housing using the PLC. Remove, clean, or replace the bags in first housing for reuse, the pipeline never shuts down.

Features

Perfect for lines that must run continuously.
Both the timer and pressure difference can be set.
Both housing can working simultaneously.
capable of processing high volumes of flow.
Effectively prevent workers from forgetting to replace the bags.
Low pressure drop.
0.5-100 microns filter bag available.

Product Details

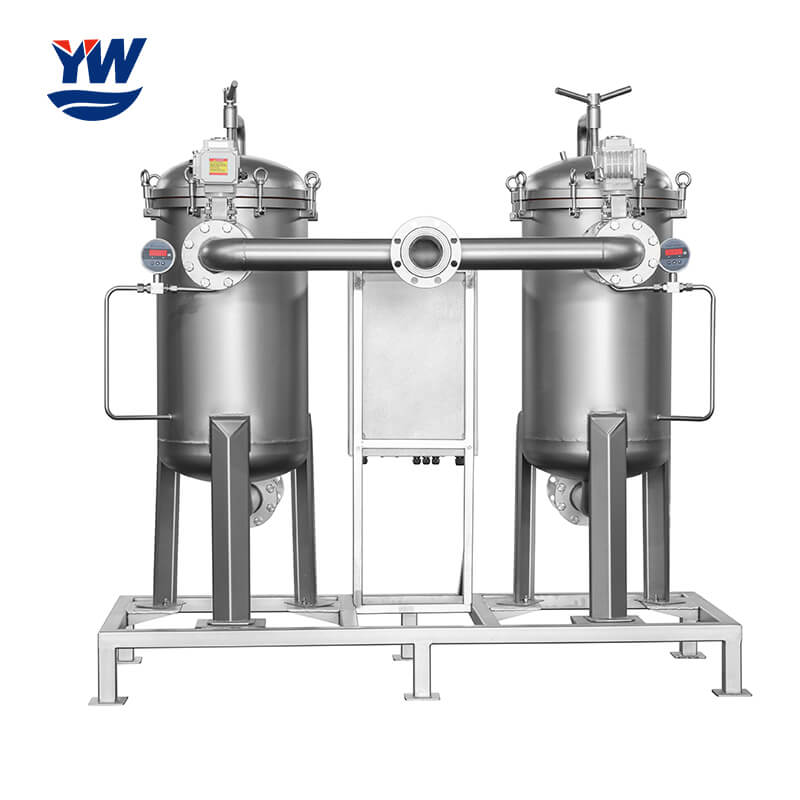

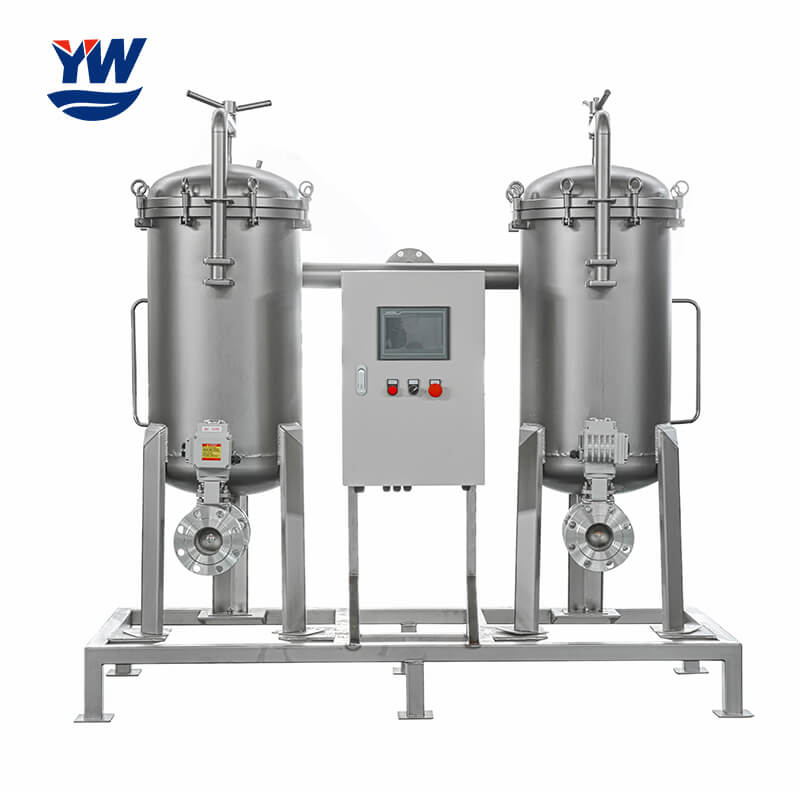

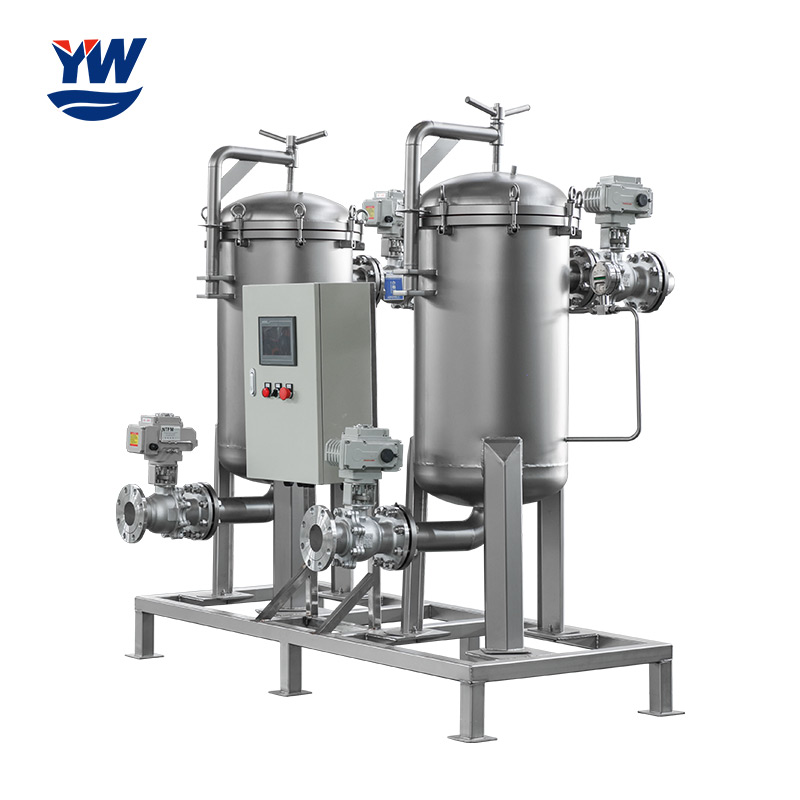

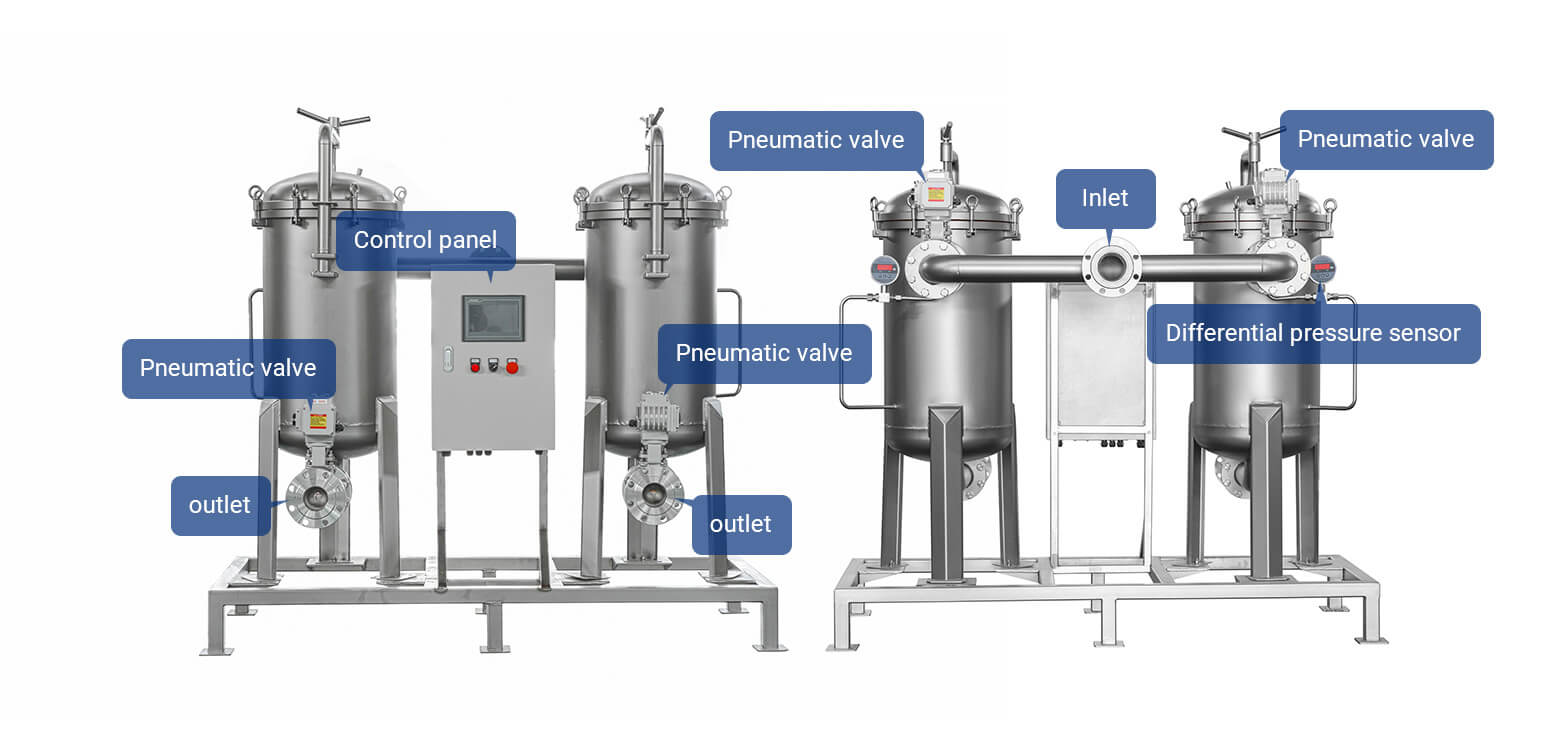

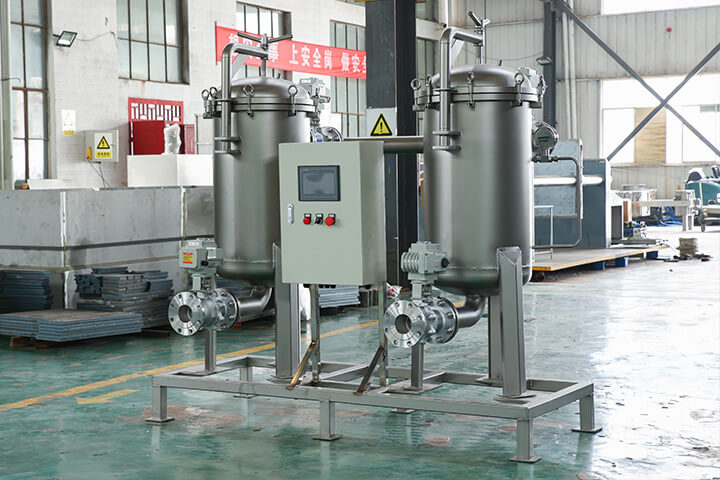

Automatic Duplex Bag Filter

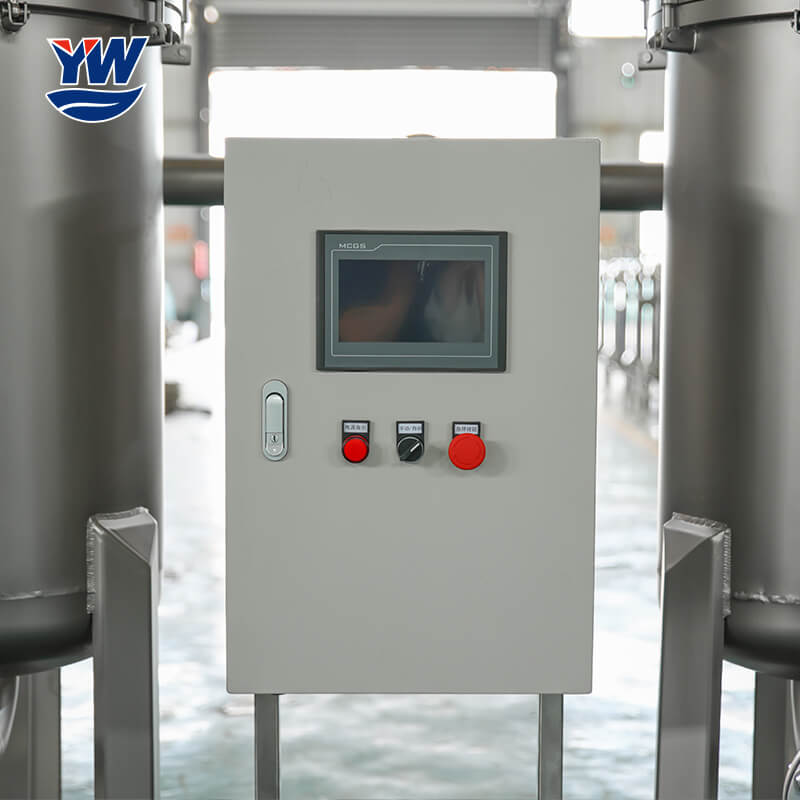

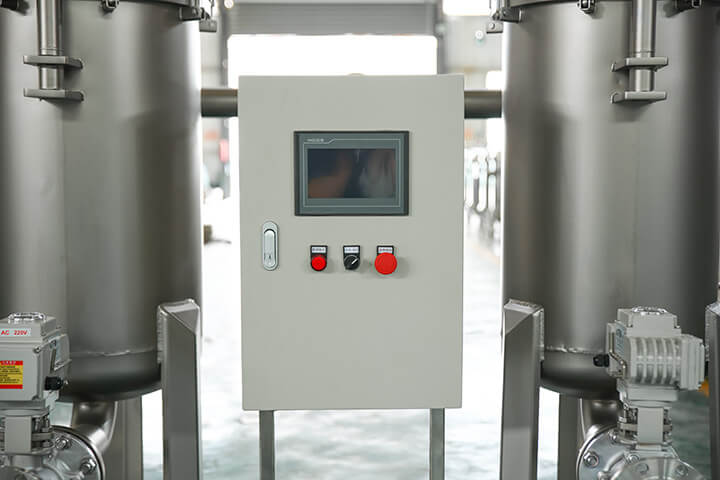

Control panel

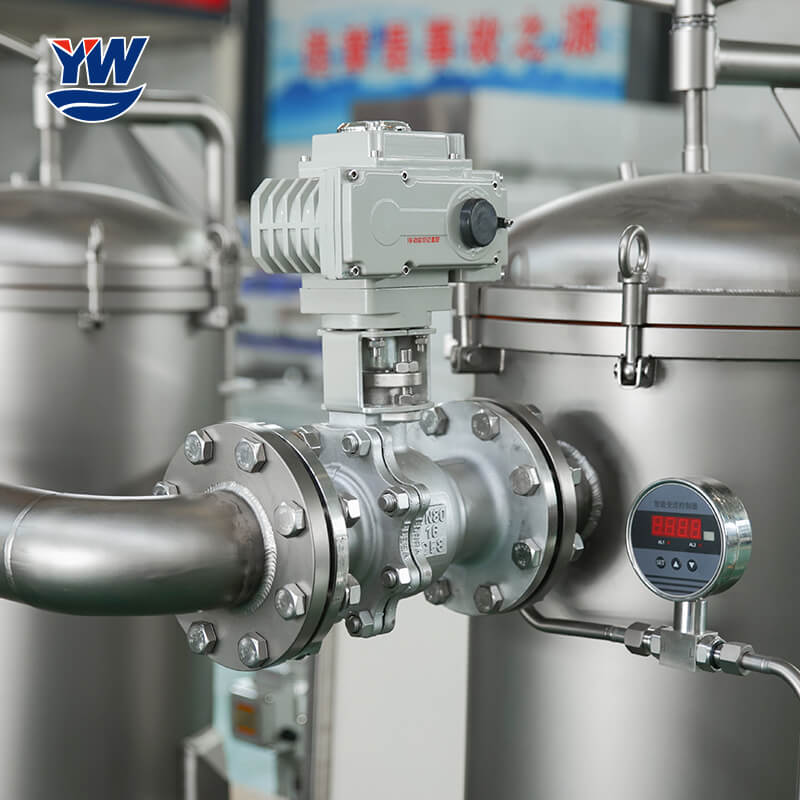

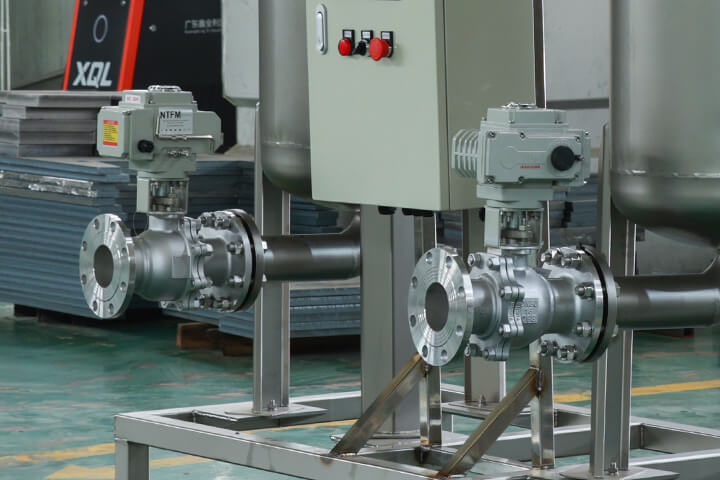

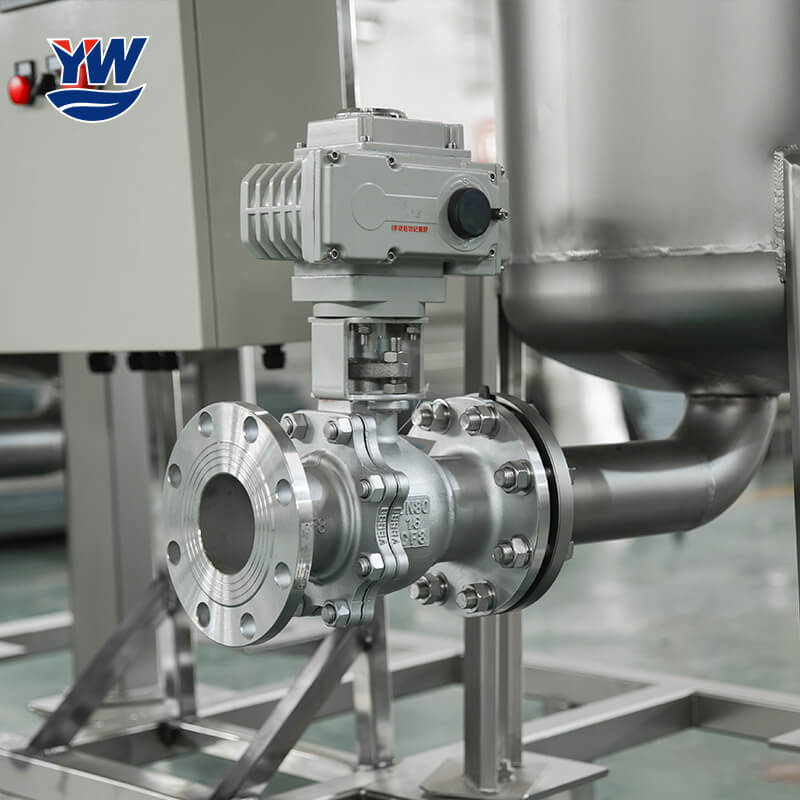

Pneumatic valve

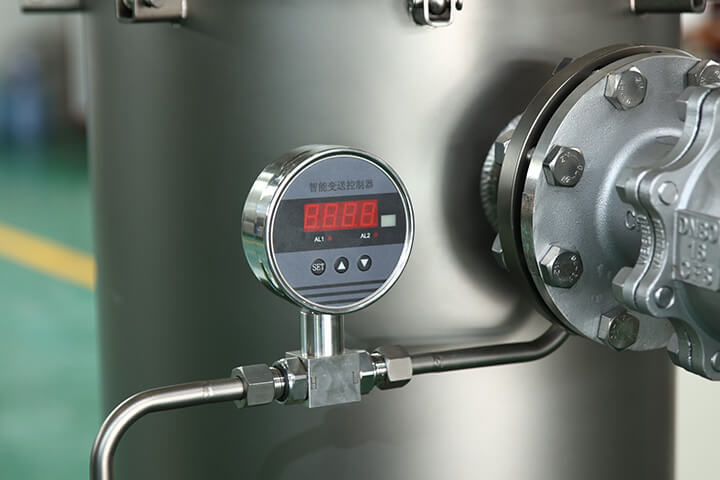

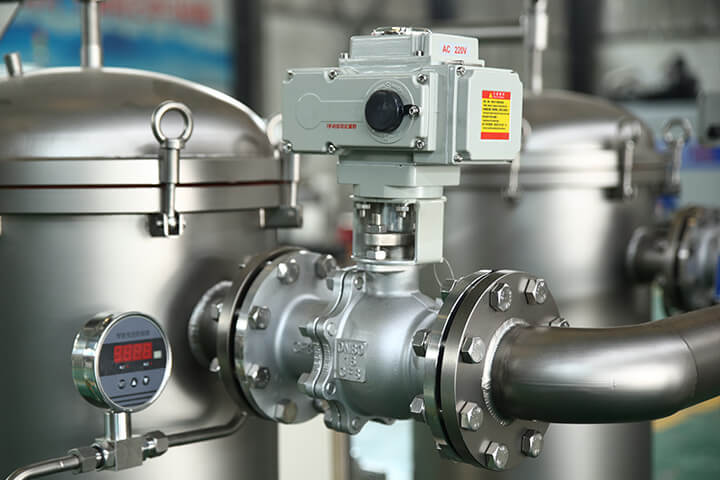

Differential pressure sensor

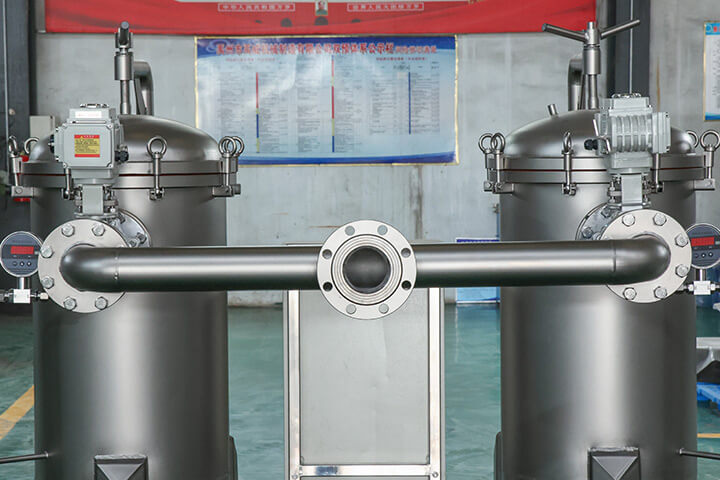

Inlet

Outlet

Specification

Model	I/O Connections（ DN)	Filtration Area（ m²)	Flow(T/H)	Dimension（mm)
YWSLD1-1	DN25-DN40	0.25	50-20	650250900
YWSLD2-1	DN25-DN50	0.5	20-40	7003001300
YWSLD3-1	DN15-DN25	0.03	0.1-5	400150500
YWSLD4-1	DN15-DN25	0.12	1-10	550200800
YWSLD2-2	DN25-DN50	1.0	30-80	12005001450
YWSLD3-2	DN40-DN50	1.5	60-120	12005001450
YWSLD4-2	DN40-DN65	2.0	80-160	15006001650
YWSLD5-2	DN40-DN65	2.5	100-200	17006501650
YWSLD6-2	DN50-DN80	3.0	120-240	18007001650
YWSLD7-2	DN50-DN80	3.5	140-280	19007501650
YWSLD8-2	DN50-DN80	4.0	160-320	20008001650
YWSLD9-2	DN50-DN80	4.5	180-360	21009001650
YWSLD10-2	DN50-DN100	5.0	200-400	220010001650
YWSLD12-2	DN50-DN100	6.0	240-480	240011001650
YWSLD14-2	DN50-DN100	7.0	280-560	260012001650
YWSLD16-2	DN50-DN100	8.0	320-640	280013001650
YWSLD18-2	DN50-DN125	9.0	360-720	300014001650
YwSLD20-2	DN50-DN125	10.0	400-800	320015001650
YWSLD22-2	DN80-DN200	11.0	440-880	320015001650
YWSLD24-2	DN80-DN200	12.0	480-960	340016001650
YWSLD26-2	DN100-DN300	13.0	520-1050	360016001650
YWSLD28-2	DN100-DN300	14.0	560-1120	360016001650
